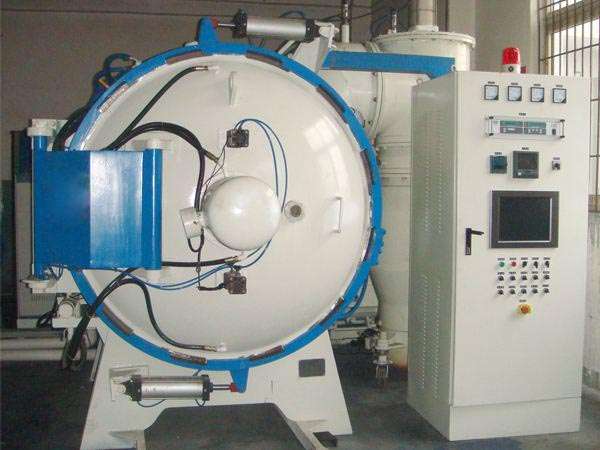

Vacuum pressure diffusion furnace

Vacuum pressure diffusion welding furnace technical characteristics

Vacuum pressure diffusion welding furnace is composed of press and heating chamber diffusion welding furnace, the pressure supply system equipped with imported from Germany 0.001 level pressure sensor, high pressure control precision, with displacement 10μm high-precision displacement sensor, accurate displacement control, independent Pressure control system to ensure constant diffusion pressure pump accurate;
Professional dynamic seal structure to ensure that the device pressure transmission rod in the effective use of long-term displacement without leakage;
On / down head (or: on / under the pressure plate, pressing platform) optional TZM alloy material can also choose isostatic graphite material;
Up / down pressure flatness control within ± 5μm;
Pressure field by 3D finite element technology to simulate a single piece of the pressure head or head under pressure in the deformation model, strict accounting, the pressure head
Leaving enough thickness of the safety margin to ensure that the pressure head in the absence of any trace deformation at high temperatures to ensure diffusion welding workpiece pressure surface roughness;
Indenter for easy installation and removal, but also can be pressurized as a separate brazing furnace to use, so that the demand side in the use of equipment with diversity;
Equipped with 2bar-15bar gas pressure under the rapid cooling system outside the loop, to ensure rapid completion of hot workpieces cool, efficient operation.

Vacuum pressure diffusion welding furnace configuration options
Door opening method: online / offline / vertical lift / rotary
Vacuum pumps and vacuum gauges: imported / high-quality domestic
PLC: Siemens / Omron / Mitsubishi
Temperature Control Instruments: Japan Island Power / UK / US Honeywell
Thermocouple: K-type indexing / N-type indexing / S-type indexing
Recorder: a paper recorder / paperless recorder
Man-machine interface: analog screen / computer touch screen
Electrical components: high-quality domestic / Schneider / Siemens
