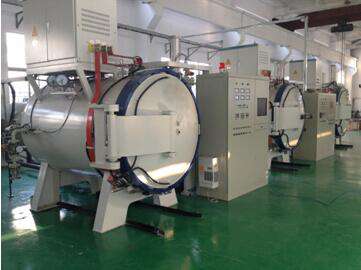

Vacuum pressure back to furnace
Vacuum pressure back to stove main purposes:
Suitable for high-speed steel, die steel, martensitic stainless steel, high alloy steel, titanium and other vacuum quenching after tempering heat treatment
Vacuum pressurized furnace characteristics:
Fully automatic program control, stable operation, man-machine interface (optional)
Convection heating fan frequency control, heating more uniform, small deformation of the workpiece
Strong cooling capacity, to meet the requirements of large-size parts of the process
Save energy, no environmental pollution
A variety of protection features to make the operation more secure
EffectiveWoking Dimensions
Loading
Capacity
Maximum
Temperature
Temperature
Uniformity
Ultimate
Vacuum
Pressure
Rising Rate
Control
mode
250×250×400mm
60Kg
700℃
≤±5%
10-1Pa/10-3Pa
≤0.5Pa/h
Fully automatic / manual
400×400×600mm
200Kg
700℃
≤±5%
10-1Pa/10-3Pa
≤0.5Pa/h
Fully automatic / manual
500×500×700mm
300Kg
700℃
≤±5%
10-1Pa/10-3Pa
≤0.5Pa/h
Fully automatic / manual
600×600×900mm
500Kg
700℃
≤±5%
10-1Pa/10-3Pa
≤0.5Pa/h
Fully automatic / manual
600×600×1200mm
600Kg
700℃
≤±5%
10-1Pa/10-3Pa
≤0.5Pa/h
Fully automatic / manual
700×700×1200mm
800Kg
700℃
≤±5%
10-1Pa/10-3Pa
≤0.5Pa/h
Fully automatic / manual
800×800×1200mm
1000Kg
700℃
≤±5%
10-1Pa/10-3Pa
≤0.5Pa/h
Fully automatic / manual
