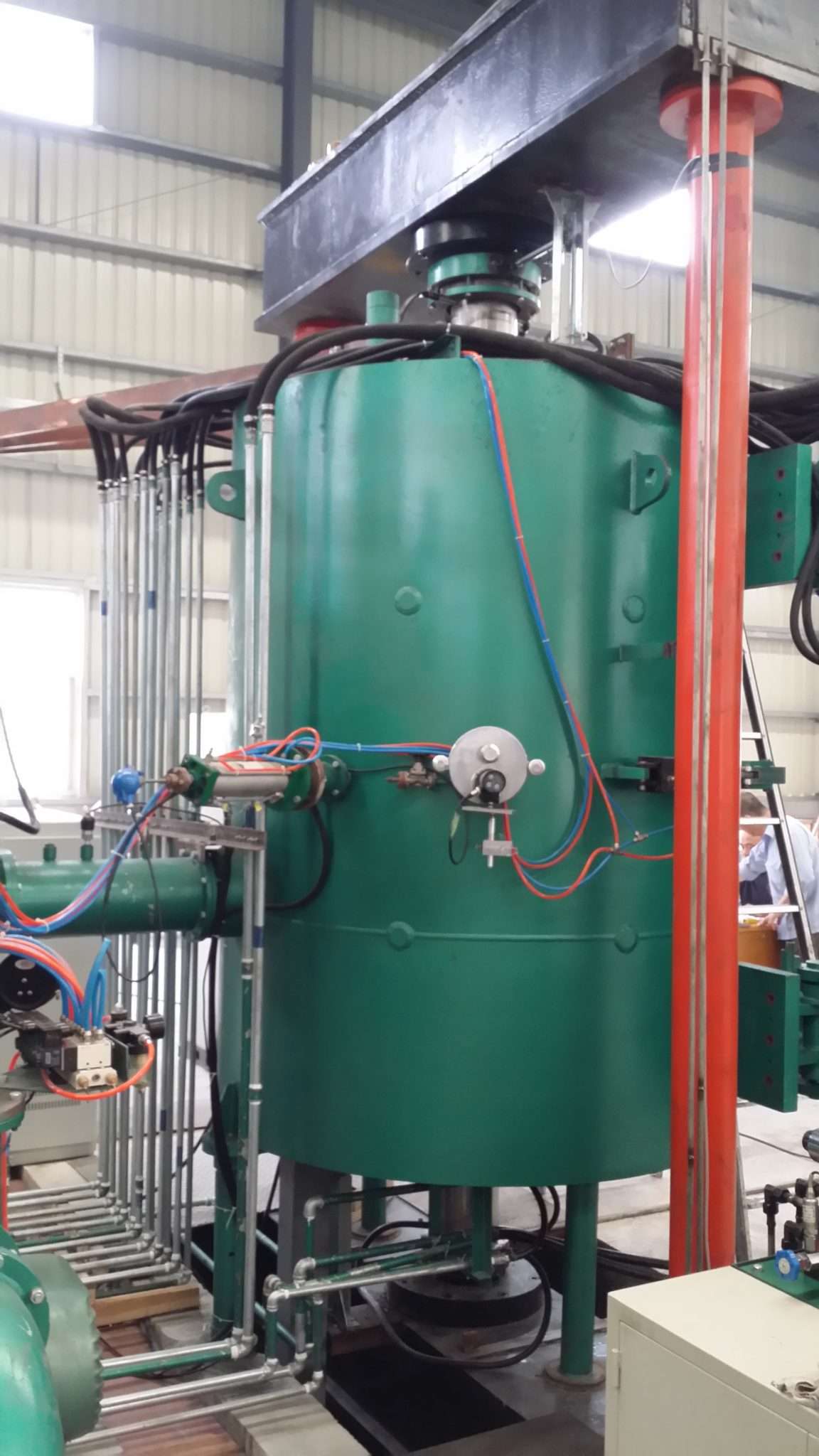

Vacuum hot press prefabricated

Vacuum hot press furnace using induction coil, through the magnetic field induction graphite tube or tungsten molybdenum metal heating way, this method has the advantage of energy saving, faster, 24 hours can produce 4 ~ 6 furnace.

Vacuum hot stove Uses:
It is suitable for sintering of electronic ceramics and high temperature structural ceramics, precision annealing and microcrystalline of glass, precision annealing of crystal, preparation of ceramic glaze, powder metallurgy, sintering of nanometer material, quenching of metal parts and heat treatment of all parts requiring rapid heating , Is the scientific research units, institutions of higher learning, industrial and mining enterprises ideal experimental and production equipment

Features:
Vacuum hot stamping furnace for the cycle of operating type, for carbide, functional ceramics, powder metallurgy and other high temperature, vacuum conditions, hot pressing sintering treatment, but also in the case of inflatable hot forming sintering.
Vacuum hot press is a vacuum (or inert protective gas) under the conditions of the material hot forming equipment, mainly using resistive heating or induction heating, driven by the cylinder pressure up and down the pressure. The device will be vacuum (or atmosphere protection), hot forming, high temperature sintering together.
The equipment is mainly used in powder metallurgy materials, ceramic materials and other special materials, high temperature sintering, hot forming process. By the mechanical press to achieve the hot process of single or two-way high-pressure role in order to obtain a dense organizational structure.
Configuration options:
Clamshell / horizontal / vertical shell selection;
Optional external cooling system;
High temperature metal (nickel chromium, molybdenum, silicon molybdenum rod) / graphite material heating options to facilitate the different process needs;
Different use temperature / vacuum selection
(Such as the use of graphite fever, the temperature up to 2000 ℃; such as the use of induction heating, the temperature up to 2400 ℃;)
