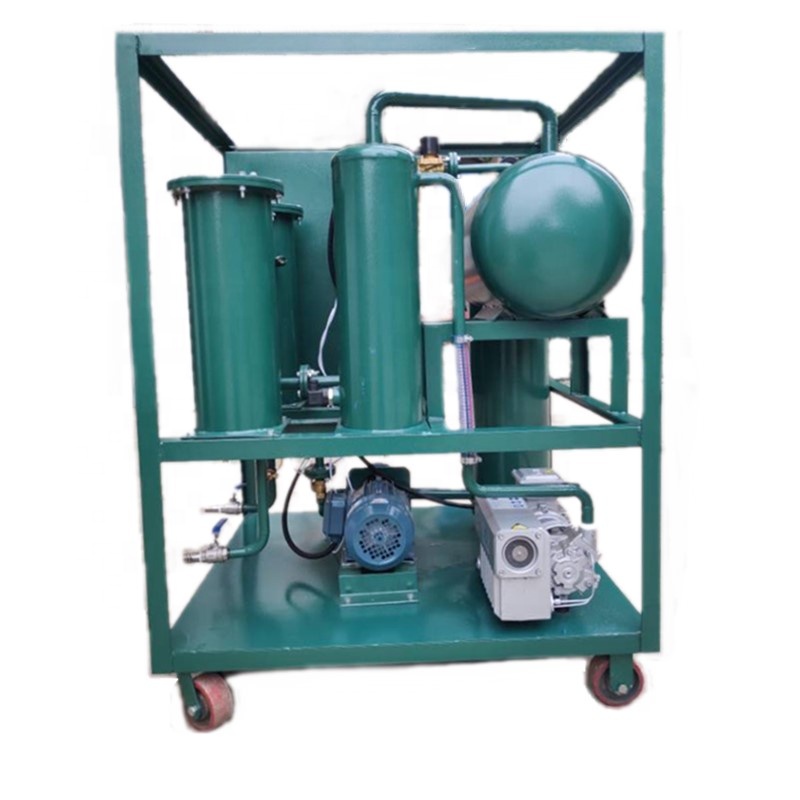

Waste Vacuum Ship Lubricant Purifier

---

1. Application

The waste vacuum marine oil purifier / lubricating oil filtering equipment is specially designed for purifying various industrial lubricating oils, such as hydraulic oil, gear oil, cooling oil, compressor oil, etc Due to the long-term use of the system, the lubricating oil will be mixed and polluted with particles, impurities, moisture and other waste residues that destroy the function of the lubricating oil. Therefore, it is very necessary and necessary to purify / filter the lubricating oil regularly.

2. Main Features

According to different actual needs, there are several types of lubricating oil purifiers in the world. The industrial lubricating oil filter is a very popular machine in the world. It can effectively remove water, gas, impurities and other waste residues in lubricating oil under the working state of high vacuum and low temperature. For customers, this is a very safe and reliable machine.

3. Benefit

24 / 7 / 365 continuous cleaning

Availability > 98%

Easy to operate

Simple maintenance

No uncontrolled lubricant waste becomes sludge

4. Technical Parameters

Model	LOP-80
Flow Rate (L/Min)	4800
Working Vacuum	-0.070~0.099 Mpa
Working Pressure	≤0.5  Mpa
Working Temperature	40-70℃
Continuous Working Hour	≥200h
Trouble-free Working Hour	≥5000h
Power Supply	380V,50HZ,3Phase(Customizable)
Residual Water	≤10ppm
Impurity Size	≤1micron
Residual Gas	≤0.1%
Cleanliness Degree(NAS)	≤5
Demulsibility	≤8min
Working noise	65 dB(A)
Heating Power	48Kw
Power	52Kw
Size	1550*950*1500mm
Weight	550Kg
