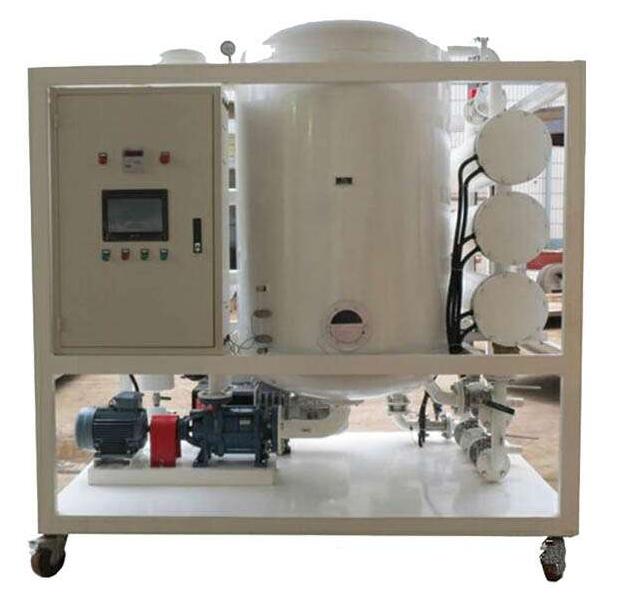

Waste Transformer Oil Vacuum Oil Filter

---

1. Application and Function

ZYD series transformer oil vacuum regeneration oil purifier can quickly remove pollutants such as moisture, gas and solid particles in waste insulating oil, transformer oil, capacitor oil, switch oil and mutual inductance oil. The processed oil can be increased by 35kV or above at one time. It is mainly applicable to power transmission and transformation equipment with voltage of 110kV and above.

Figure 1 The transformer oil before treatment and the transformer oil after treatment

2. Technical Parameters

Item	Unit	main technical index
Filtering refueling ability	L/Min	1
breakdown voltage	KV	360
maximum vacuum degree	Mpa	-0.099
Working pressure	Mpa	0-0.5
Total power	kw	0.8
Length*Width*Height	mm	450*320*660
input voltage	V	380
Noise	dB（A）	40
Weight	Kg	45
