Vacuum Pressure Impregnation Equipment for Motor Winding

---

1. Vacuum Pressure Impregnation Equipment Product Description

1). Door leaf: manual mechanical opening mode.

2). High safety: electromechanical safety interlocking system is adopted.

3). Effective preservation of thermal resources. External rock insulation ensures thermal resource efficiency.

4). The temperature, pressure and time are controlled automatically and accurately. When the pressure is too high, the safety valve opens automatically.

5). Electric heating water can produce steam to ensure uniform heat distribution.

6). After startup, it operates semi automatically without manual operation.

7). Equipped with manual operation system. The operation of autoclave is controlled by manual controller.

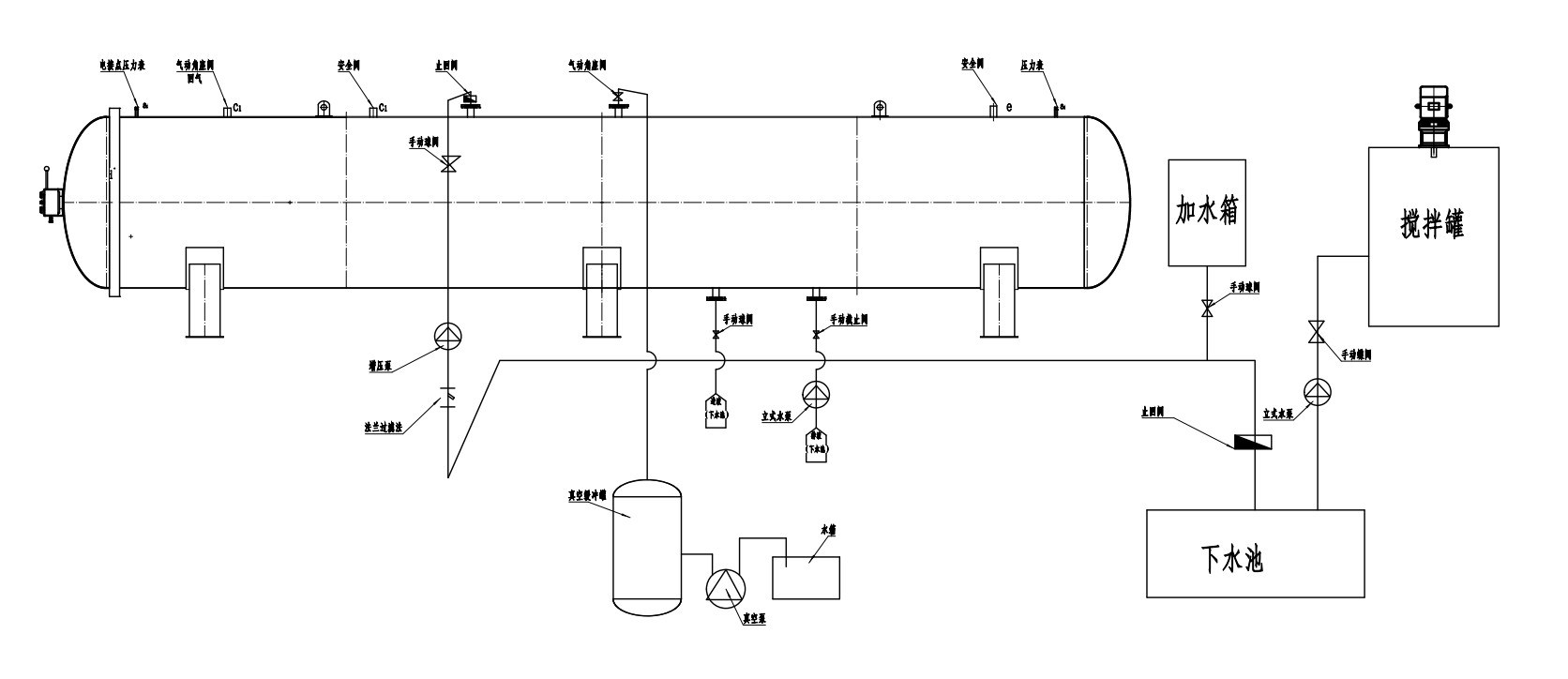

2. Product Structure

3. Specification

Specifications of Low Temperature Impregnation Furnace
Spec\Model	VPI-0508L	VPI-0812L	VPI-1015L
Working Zone Size	Φ 500*800mm(D*H)	Φ 800*1200mm(D*H)	Φ 1000*1500mm(D*H)
Max.Temperature	400°C	400°C	400°C
Heating Power	45Kw	90Kw	150Kw
Ultimate Vacuum	9.8Pa	9.8Pa	9.8Pa
Pressure Rising Rate	30Pa/h	30Pa/h	30Pa/h
Specifications of High Temperature Impregnation Furnace
Spec\Model	VPI-0304H	VPI-0508H	VPI-0610H
Working Zone Size	Φ 300*400mm(D*H)	Φ 500*800mm(D*H)	Φ 600*1000mm(D*H)
Max.Temperature	1250°C	1250°C	1250°C
Heating Power	45Kw	90Kw	135Kw
Ultimate Vacuum	9.8Pa	9.8Pa	9.8Pa
Pressure Rising Rate	1Pa/h	1Pa/h	1Pa/h
Note: The above parameters can be adjusted to the process requirements, they are not as acceptance standard, the detail spec. will be stated in the technical proposal and agreements.

Shanghai Geheng Vacuum Technology Co., Ltd. is a vacuum heat treatment furnace manufacturer with many years of experience in design, manufacturing and production. Mainly produce vacuum heat treatment furnace, vacuum sintering furnace, vacuum brazing furnace, New Energy And Environmental Protection Equipment and Vacuum Carbonization Furnace .Provide customized services, equipment work area can be based on customer output.
