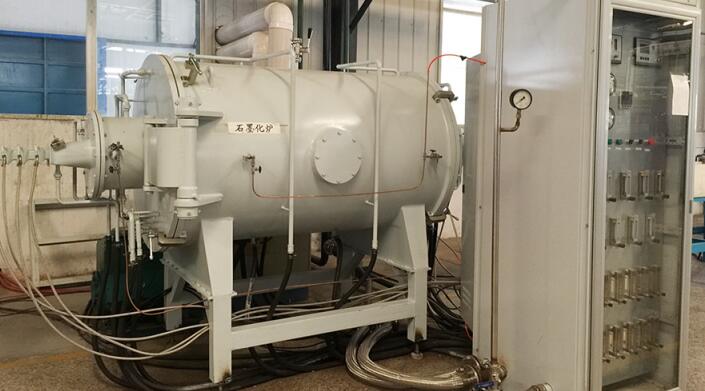

Vacuum Graphitization Furnace For Graphite Purification

---

Vacuum graphitization furnace for graphite purification

1. Product description

High temperature graphitization furnace is a high-performance intelligent electric furnace developed by our technicians by digesting and absorbing foreign temperature measurement, temperature control technology, intelligent technology, new materials and furnace body design, and launched in the special carbon material industry (which can also be applied to other industries with technical permission).

The maximum temperature is 3000 ℃, which can fully meet the sintering and graphitization of various materials.

The digital display intelligent temperature control system is adopted to complete the temperature measurement and control process with full-automatic and high precision. The system can heat according to the given heating curve, and can store 400 different process heating curves.

Adopt internal circulation pure water cooling system; Digital flow monitoring system, furnace body conversion adopts high-performance medium frequency contactor; Comprehensive PLC water, electricity and gas automatic control and protection system.

2. Optional Configuration of Horizontal Vacuum Carbonization Furnace

Product model	IVG-130H	IVG-200 H	IVG-260 H	IVG-300 H	IVG-500 H
specifications (diameter x length mm)	Φ400×1000	Φ500×1000	Φ600×1200	Φ700×1600	Φ900×1600
IF power supply Kw	130	200	260	300	500
IF power supply frequency Hz	1500	1000	1000	1000	1000
Maximum operating temperature °C	3000	3000	3000	3000	2850
Ultimate vacuum Pa	1.2×10-1	1.2×10-1	1.2×10-1	1.2×10-1	1.2×10-1
Pressure rise rate Pa/h	0.67	0.67	0.67	0.67	0.67
Constant temperature zone temperature difference °C	±10	±10	±10	±10	±15

Shanghai Geheng Vacuum Technology Co., Ltd. is a vacuum heat treatment furnace manufacturer with many years of experience in design, manufacturing and production. Mainly produce vacuum heat treatment furnace, vacuum sintering furnace, vacuum brazing furnace, New Energy And Environmental Protection Equipment and Vacuum Carbonization Furnace .Provide customized services, equipment work area can be based on customer output.
