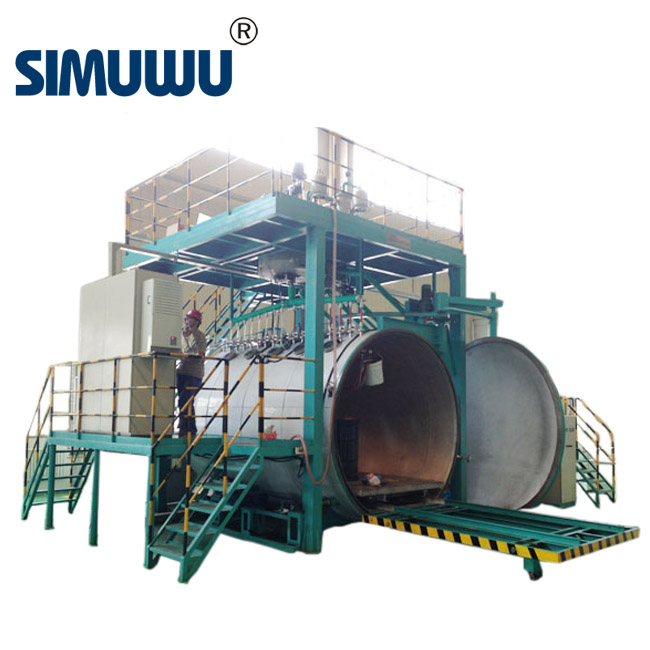

Vacuum Drying Equipment With Oil-filled Transformer

---

1.Main Features

1). Customize the design according to the customer’s specifications to achieve the best and energy-saving drying performance

2). The automatic control system, drying and oil filling process of the plant are very advanced

3). Variable pressure vacuum drying process, high efficiency and uniform heating

2. Application

Distribution transformer

Power transformer

High voltage transformer

3. Specification  :Rectangular Design:

Model	DimensionL*W*H  mm	Ultimate vacuum	Leakage rate	Operating temp.	Temp. accuracy	Control mode
VFT-4025	4000×2500×2500	≤50Pa (unload)	≤500Pa.L/S	115±5℃	±5℃	Auto control by HMI
VFT-4030	4000×3000×3000	≤50Pa (unload)	≤500Pa.L/S	115±5℃	±5℃	Auto control by HMI
VFT-5030	5000×3000×3000	≤10Pa (unload)	≤500Pa.L/S	115±5℃	±5℃	Auto control by HMI
VFT-5035	5000×3000×3500	≤10Pa (unload)	≤500Pa.L/S	115±5℃	±5℃	Auto control by HMI
VFT-6040	6000×4000×4000	≤10Pa (unload)	≤500Pa.L/S	115±5℃	±5℃	Auto control by HMI
VFT-7545	7500×4000×4500	≤10Pa (unload)	≤500Pa.L/S	115±5℃	±5℃	Auto control by HMI
VFT-8545	8500×4500×4500	≤10Pa (unload)	≤500Pa.L/S	115±5℃	±5℃	Auto control by HMI
VFT-9050	9000×4500×5000	≤10Pa (unload)	≤500Pa.L/S	115±5℃	±5℃	Auto control by HMI

Shanghai Geheng Vacuum Technology Co., Ltd. is a vacuum heat treatment furnace manufacturer with many years of experience in design, manufacturing and production. Mainly produce vacuum heat treatment furnace, vacuum sintering furnace, vacuum brazing furnace, New Energy And Environmental Protection Equipment and Vacuum Carbonization Furnace .Provide customized services, equipment work area can be based on customer output.
