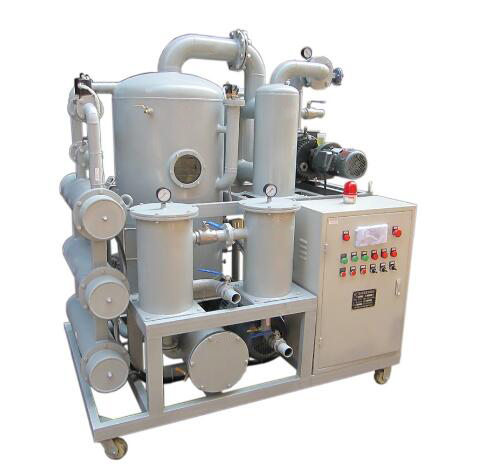

Vacuum Dehydration Degassing Double Stage Transformer Oil Purifier Machine

The vacuum dehydration degassing two-stage transformer oil purifier can quickly remove pollutants such as moisture, gas and solid particles in waste insulation oil, transformer oil, capacitor oil, switch oil and mutual inductance oil. The processed oil can be increased by 35kV or above at one time. It is mainly applicable to power transmission and transformation equipment with voltage of 110kV and above.

The machine is equipped with a caravan and a mobile trailer, which is suitable for indoor and outdoor use and is convenient for long-distance movement.

Item	Name of parameter		Type/Unit	GH-JA-10KY	GH-JA-20KY	GH-JA-30KY	GH-JA-50KY	GH-JA-80KY	GH-JA-100KY	GH-JA-150KY	GH-JA-200KY	GH-JA-300KY
Technical parameter of the equipment	Nominal flow capacity		L/Min	10	20	30	50	80	100	150	200	300
	Limit vacuity		Pa	≤20
	Working Vacuity		Pa	≤400
	Working temperature of Oi		℃	50-65
	Power		V	50Hz380V(3-Phase 4-Wire)
	Working pressure		MPa	≤0.35
	Total power		KW	3.6+0.75	9+1.5	12+1.5	30+3	2.*24+3.3	2*30+4	3*30+6	4*30+7	5*30+9
	inlet-outlet overall		mm	25/16	32/25	32/25	38/32	38/32	44/38	48/44	64/48	76/64
	Weight		Kg	300	350	420	500	600	800	1000	1500	2500
	Size	Length	mm	1200	1250	1300	1400	1600	1650	1850	2100	2200
		Width		1000	1050	1100	1100	1200	1150	1250	1350	1400
		Height		1250	1450	1500	1700	2100	2050	2150	2200	2300
Oil treatment-index	Oil Puncture Voltage		Kv	60-65
	Moisture content		PPm	5-10
	Air content		%	≤0.25
	Filtering accuracy		μm	3

Shanghai Geheng Vacuum Technology Co., Ltd. is a vacuum heat treatment furnace manufacturer with many years of experience in design, manufacturing and production. Mainly produce vacuum heat treatment furnace, vacuum sintering furnace, vacuum brazing furnace, New Energy And Environmental Protection Equipment and Vacuum Carbonization Furnace .Provide customized services, equipment work area can be based on customer output.
