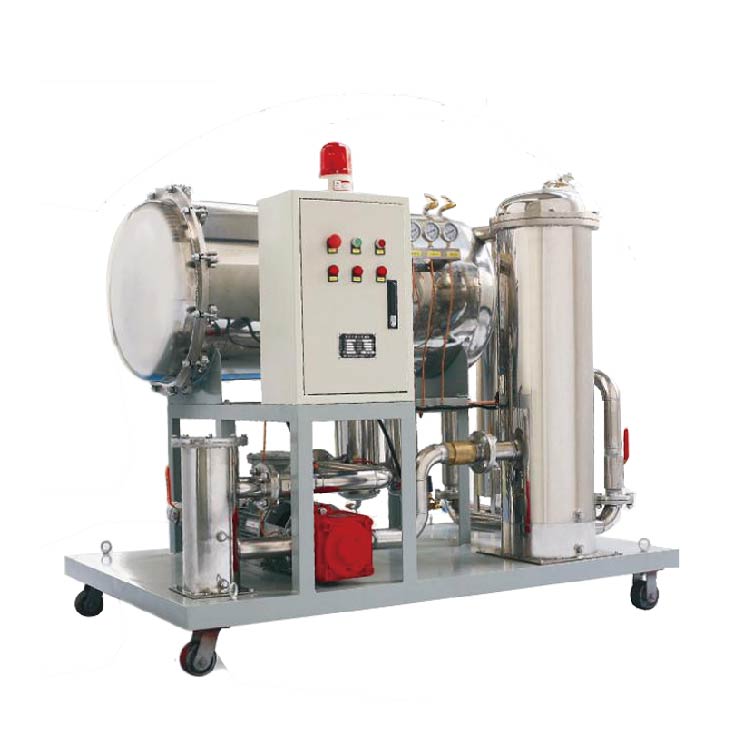

Vacuum Dehydrated Oil Purifier

---

1. Application of vacuum dehydrated oil purification system

Vacuum dehydrated oil purification system is applied to the purification of diesel, kerosene, lubricating oil, hydraulic oil and other oils. Remove water and impurities in the oil and improve the cleanliness of the whole system.

Advantages of macromolecular water coalescence purifier; No need to remove moisture by heating; Different liquids have different surface tension. When the liquid flows through the hole, the smaller the surface tension, the faster the transmission speed.

2. Vacuum dehydrated oil purification principle

When different mixed liquids flow into the separator and first enter the coalescence filter element, the filter adopts multi-layer filter media, and the pore diameter increases layer by layer. Due to the difference of surface tension, oil can pass through the filter layer quickly, while water passes through much slower; In addition to using hydrophilic materials, the coalescence filter adsorbs small water droplets on the surface of the filter layer to coalesce the water droplets. Under the action of kinetic energy, water droplets pass through the hole and gradually become large water droplets. Under the action of gravity, they fall and separate from the oil. The oil also contains small water at the end of the coalescence filter element and advances to the separation filter element through inertia. The separation filter element is made of special hydrophobic materials. When the oil passes through the separation filter, it will block small moisture, and the oil will be discharged from the outlet through the separation filter.

Item	Name of parameter		Type/Unit	GH-JA-10KY	GH-JA-20KY	GH-JA-30KY	GH-JA-50KY	GH-JA-80KY	GH-JA-100KY	GH-JA-150KY	GH-JA-200KY	GH-JA-300KY
Technical parameter of the equipment	Nominal flow capacity		L/Min	10	20	30	50	80	100	150	200	300
	Limit vacuity		Pa	≤20
	Working Vacuity		Pa	≤400
	Working temperature of Oi		℃	50-65
	Power		V	50Hz380V(3-Phase 4-Wire)
	Working pressure		MPa	≤0.35
	Total power		KW	3.6+0.75	9+1.5	12+1.5	30+3	2.*24+3.3	2*30+4	3*30+6	4*30+7	5*30+9
	inlet-outlet overall		mm	25/16	32/25	32/25	38/32	38/32	44/38	48/44	64/48	76/64
	Weight		Kg	300	350	420	500	600	800	1000	1500	2500
	Size	Length	mm	1200	1250	1300	1400	1600	1650	1850	2100	2200
		Width		1000	1050	1100	1100	1200	1150	1250	1350	1400
		Height		1250	1450	1500	1700	2100	2050	2150	2200	2300
Oil treatment-index	Oil Puncture Voltage		Kv	60-65
	Moisture content		PPm	5-10
	Air content		%	≤0.25
	Filtering accuracy		μm	3
