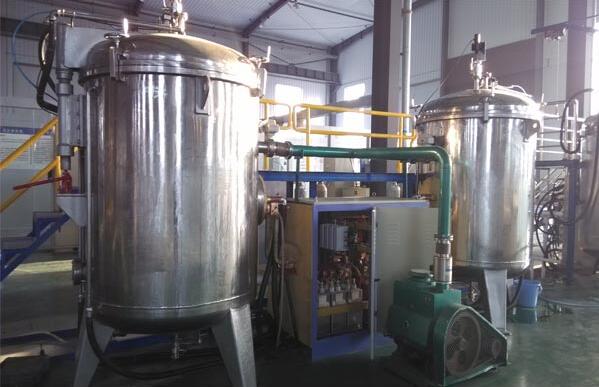

Vacuum carbon fiber graphitization furnace

---

1. Application of vacuum carbon fiber graphitization heat treatment furnace

It is applicable to the sintering and graphitization of carbon materials, PI films and graphite powder, the sintering of carbon fiber rope, carbon fiber filament and other materials that are allowed to be sintered and melted in carbon environment.

2. Technical parameters of vacuum carbon fiber graphitization heat treatment furnace

Item No.	SV2-2-19TP
Chamber size:	100x100x100 mm, Capacity: 1 liter.
Power:	2kW Max. ( power cord is included )
Voltage:	AC 220V 50/60 Hz
Max. Temperature :	1900 °C for short time ;
Continuous Working Temperature:	1800 °C Max. ;
Max. Heating Rate:	0-30 °C /min,Suggest to be 20.C/min.
Temperature Controller :	PID automatic control and auto-tune function. 30/50 programmable segments for precise control. Built in protection for overheating and broken thermocouple. Large digital control panel for easy operation.
Temperature Accuracy :	+/- 1 °C
Heating Elements :	graphite rod
Thermocouple :	Infrared Thermometer
Max. vacuum:	100Pa,10Pa,1Pa, 10*-1pa, 10*-3pa optional.
Atmosphere:	Helium (He), Neon(Ne), Argon(Ar), Krypton(Kr), Xenon(Xe), Radon(Rn), Oxygen(O2),Nitrogen (N2), Hydrogen(H2) .
Standard parts:	Vacuum pump 1pc,crucible tongs 1pc,asbestos gloves 1 pair,one user manual.
Optional parts:	PLC touch screen controller, paperless recorder,Remote communication control system, 2-3 gas channels mixing system desktop.

3. Select excellent configuration according to customer requirements

3.1. Touch screen or industrial computer automatically controls and records process parameters. PLC can realize data communication with touch screen display system, intelligent temperature control meter and PLC programming.

3.2. Digital flow monitoring system, each water is monitored by flowmeter.

3.3. Configure roots pump according to vacuum requirements, and the vacuum degree can reach 10Pa.

3.4. Add air inlet and outlet automatic balance system for personnel on duty. (the mass flow control instrument accurately controls the gas flow into the furnace, and the pressure control instrument accurately controls the atmosphere pressure in the furnace.)

3.5. Tar is collected by two-stage condenser to remove coke and filter to purify vacuum waste gas, which can effectively protect the normal operation of vacuum pump.

3.6. High performance gas purifier, the oxygen content of gas can be reduced to 1ppmv, and the dew point temperature can be reduced to – 70.

3.7. The multi-functional operation platform can realize remote control, with a maximum distance of 30m.

Shanghai Geheng Vacuum Technology Co., Ltd. is a vacuum heat treatment furnace manufacturer with many years of experience in design, manufacturing and production. Mainly produce vacuum heat treatment furnace, vacuum sintering furnace, vacuum brazing furnace, New Energy And Environmental Protection Equipment and Vacuum Carbonization Furnace .Provide customized services, equipment work area can be based on customer output.
