vacuum brazing furnace for insulation pot

vacuum brazing furnace for insulation pot

Type: Resistance Furnace
Usage: Brazing Furnace
Origin: China
Voltage: According to user requirements
Power (W): Adjustable
Size (length * width * height): customized
Weight: 5-30T
Certification: ISO 9001:2008
Warranty period: 12 months
Providing after-sales service: Engineers can repair machinery overseas
Cavity material: cast iron, stainless steel, optional
Structure: Horizontal, Vertical, Batch, Continuous
Loading capacity: 10-3000kg (adjustable)
Vacuum System: Made in China, Leybold, EVP vacuum pump, Edwards, Kinney
Heating mode: induction, resistance
PLC Controller: Standard
Heater: stainless steel, Mo strip, graphite
Maximum temperature: 500℃ – 1000℃ (customized)
Temperature Uniformity: +5℃

Vacuum Brazing Furnace Technical characteristics of equipment:

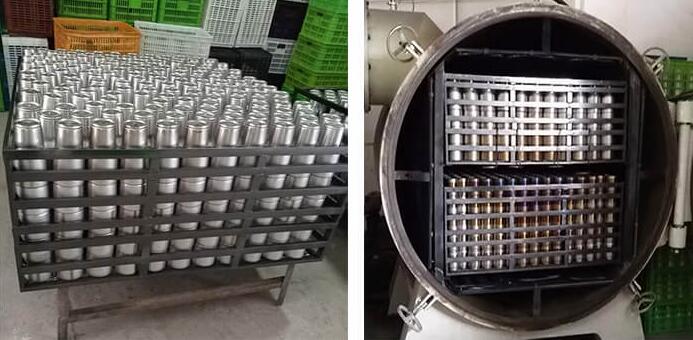

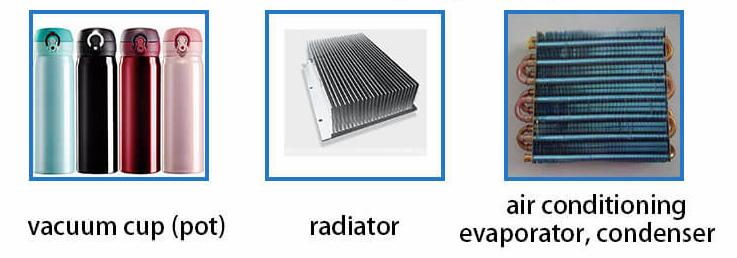

1. For the particularity of brazing of insulating cup, it can be designed as a two-layer structure.
2. Multi-zone synthesis furnace consisting of stainless steel heating tube and multi-layer stainless steel sieve has good temperature uniformity.
3. The inlet of the vacuum system is equipped with gas condenser phase shifter and filter collection device to eliminate flux evaporation gas on the contaminants of the vacuum pump group.
4. Unique anti-pollution technology supervision to ensure long-life vacuum regulation;
5. The furnace has interlocking functions such as temperature, pressure, water pressure and vacuum, and has high safety protection and protection functions.
6. It has the functions of remote control operation, remote fault diagnosis and remote program update.

Vacuum Brazing Furnace Optional configuration:
1. Furnace: All-carbon steel/internal stainless steel/all-stainless steel;
2. Vacuum pump: foreign brand / Chinese brand;
3. Operation panel: touch screen / industrial computer;
4. Temperature controller: SHIMADEN / EUROTHERM;
