Transformer Vacuum Epoxy Resin Casting Machine
1. Main technical requirements
Effective size of vacuum pouring tank: 2400 × 3000 (horizontal); effective volume of final mixing tank: 300L.
Local power of products after casting ≤ 10pc
2. Total technical indicators and parameters
①. Casting pot size: 2400 × 300mm
②. Main pumping speed of vacuum system: 300L s
③. Working temperature of casting point: 70 ~ 85 ℃ (adjustable)
④. Casting point cooling limit vacuum ≤ 50pA
⑤. Final working vacuum of casting point ≤ 100Pa
⑥. Leakage rate of casting point ≤ 200Pa. LS

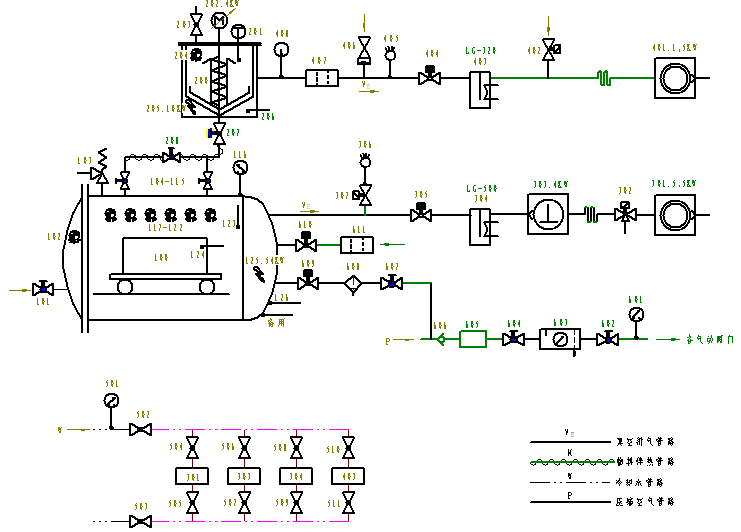

3. Schematic diagram
