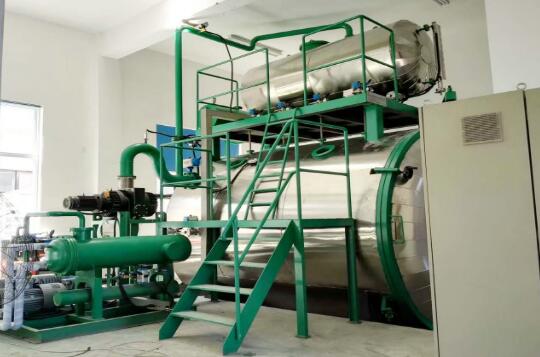

Transformer Oil Treatment Vacuum Oil Injection System

---

1. Product Description

The high vacuum oil filter improves and reprocesses the insulating transformer oil by removing dust, gas, sludge, water and other impurities. The main operations are heating, filtration, degassing and dehydration. After recovery, the performance of transformers, circuit breakers, mutual inductors, cables and capacitors with insulation system can be improved. It is also suitable for treating low viscosity lubricating oil.

1. Large substation transformer maintenance, fast and advanced treatment of new transformer oil and imported insulating oil. And vacuum filtration and purification of mutual inductance oil, capacitor oil and refrigeration oil.

2. It is especially suitable for the purification of large power transmission and transformation devices above 110kV and transformers of national household electrical appliance network.

3. Widely used in power plants, power stations, power companies, metallurgy, petrochemical, machinery, transportation.

Railways, especially in plateau areas above 500 meters above sea level.

2. Round tank- suitable for high voltage transformers, high pressure casing dry oiling 220-500KV

Drying tank dimension(mm)	Ultimatevacuum	Leakagerate	Operating temperature（℃）	Temperature control accuracy（℃）	Controlmode
Φ2600*4500 Vertical	≤10Pa（Unload）	≤100Pa.L/S	115±5℃	±5℃	Auto smart control
Φ3200*3500 Vertical	≤10Pa（Unload）	≤100Pa.L/S	115±5℃	±5℃	Auto smart control
Φ3200*4500 Vertical	≤10Pa（Unload）	≤100Pa.L/S	115±5℃	±5℃	Auto smart control
Φ3600*8000 Vertical	≤10Pa（Unload）	≤100Pa.L/S	115±5℃	±5℃	Auto smart control
Φ4200*8000 Vertical	≤10Pa（Unload）	≤100Pa.L/S	115±5℃	±5℃	Auto smart control

Shanghai Geheng Vacuum Technology Co., Ltd. is a vacuum heat treatment furnace manufacturer with many years of experience in design, manufacturing and production. Mainly produce vacuum heat treatment furnace, vacuum sintering furnace, vacuum brazing furnace, New Energy And Environmental Protection Equipment and Vacuum Carbonization Furnace .Provide customized services, equipment work area can be based on customer output.
