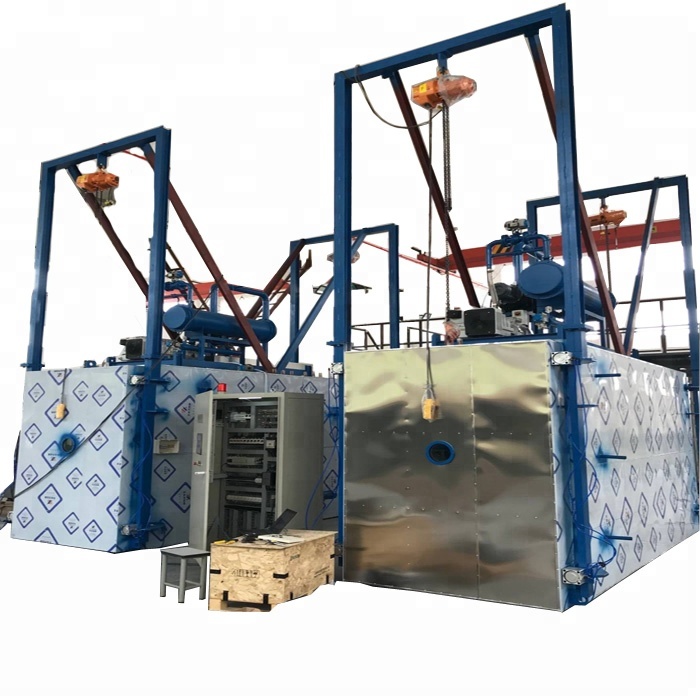

Transformer Hot Air Circulation Vacuum Drying Equipment
Hot air circulation vacuum drying plant for transformer winding coil insulation
1. Structure
1). Vacuum drying chamber
2). Vacuum system
3). Closed hot air circulation system
4). Heat transfer oil heating system
5). Refrigeration system
6). Compressed air system
7). Cooling water system
8). Hydraulic system and two chamber cover opening mechanism
9). Measurement and control system
2. Technical Paramters
Name
Hot air circulation vacuum drying curing oven
(Can be adjusted
according to user
requirements)
Technical Parameters
Power
3 Phase 380V 50HZ
Operating temperature range
From room temperature to 200 ℃
Empty furnace heating time
40~100℃/h
Furnace surface temperature rise
≤Room temperature+25℃
Temperature fluctuation
≤±1℃
Temperature uniformity
≤±25%(referring to the highest temperature)
The heating power
Based on the oven volume
Blasting power
0.75KW/ unit, the number to be determined
Exhaust power
0.75KW/1unit
Effective size
1600*1800*2000mm(W*H*L)
2000*2000*3000mm(W*H*L)
2000*2000*3500mm(W*H*L)
Can be customized according to user requirements of non-standard size
Trolley size
The box of this package
Furnace body
The overall framework of the structure, large oven site with do
Door
Manually open the front of the furnace door
Shell
Q235 cold-rolled steel plate after anti-rust treatment, spraying acrylic dry paint
Liner
Q235 cold-rolled steel plate by rust treatment, spraying W61 series of silicone heat-resistant paint
Shell skeleton
Q235 channel, angle steel rust treatment
Liner skeleton
Q235 rust-proof steel angle rust treatment, spraying W62 silicone temperature system paint
Insulation Materials
High-quality aluminum silicate cotton, rock wool or other insulation materials
