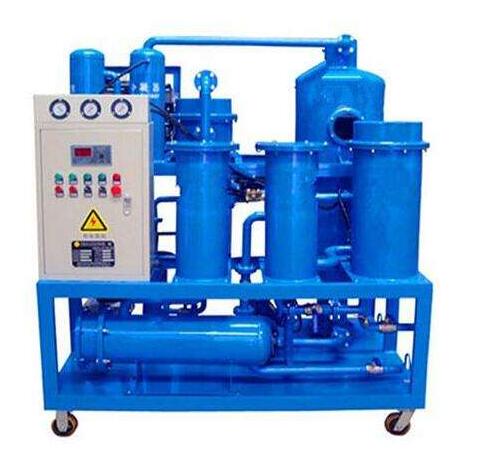

Steam Turbine Coalescing Separation Transformer Purifier

---

1. Product Description

The coalescing dehydration oil filter integrates the two functions of precision filtration and high efficiency dehydration. Adopting advanced “coalescence and separation” dehydration technology, the dehydration efficiency is high and the capacity is strong. Especially suitable for the separation of large amounts of water in oil. It has the incomparable advantages of vacuum method and centrifugal method.

It can break all the oil-water emulsification structure in the medium: through the filtration of the particle filter system, the cleanliness of the medium can be stably controlled to the state required by the system to ensure the cleanliness of the oil: the physical and chemical properties of the oil remain unchanged.

Extend the service life of the oil wave: low energy consumption.

Low operating cost; excellent system configuration, strong continuous working performance, suitable for online operation.

2. The coalescing dewatering oil filter has a five-stage filtration system:

The first-stage oil suction filter, in the coarse filter of the oil suction port, plays a role in protecting the oil pump and prolongs the service life of the main filter.

The second-stage pre-filter is located upstream of the coalescer, which can prolong the service life of the coalescer and reduce the particle content in the filtrate.

The third stage coalescing filter condenses and sinks the water in the oil.

The fourth-stage separation filter further blocks the tiny water droplets in the oil to achieve high-efficiency separation.

The five-stage fine filter adopts a filter medium with high precision and large dirt holding capacity, which can purify oil safely and efficiently.

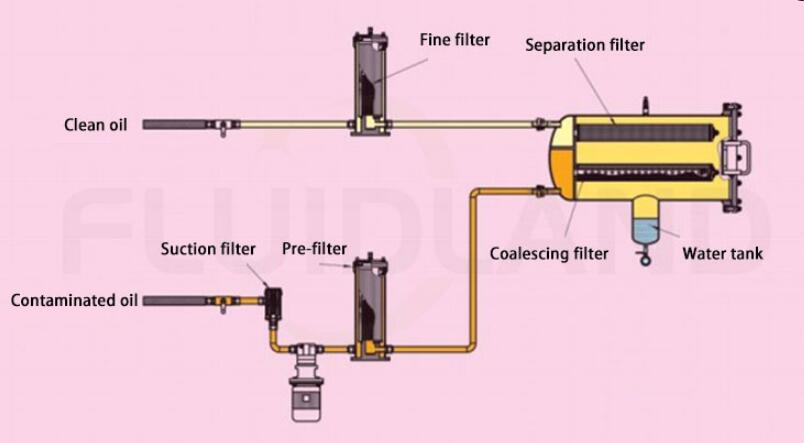

3. Oil purifier work process

4. Application

Purification of turbine oil and transformer oil

Dewatering and impurity filtering of hydraulic and lubricating system oil

Enter the hydraulic and lubrication system to improve the cleanliness of the system
