Sintered PM Powder For Metal Parts

---

1. Product Description:

Designed for maximum value

MIM technology provides a unique ability to produce highly complex parts that cannot be economically achieved by any other process.

MDM MIM works closely with you on design, material and surface treatment requirements to get the most value from the MIM process. Our extensive in-house capabilities in machining, heat treatment, and surface finishing provide a way to manage total project costs.

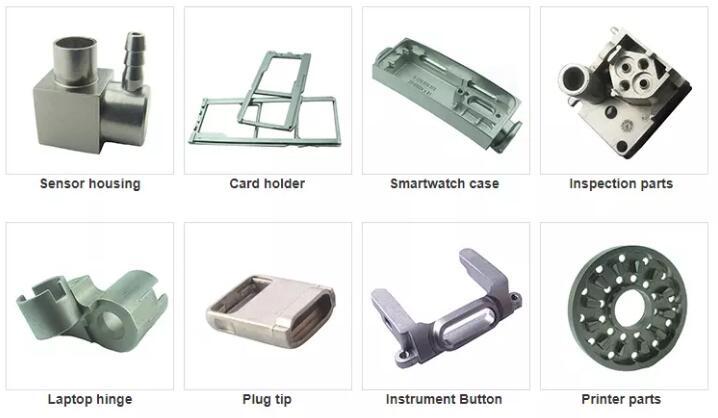

2.PM industrial product solutions

Door hardware-lock shell, lock core, bracket, pin

Hand and power tools-handles, drill bits, keyless chucks, blade clamps, pawls, ratchet mechanisms

Electronic equipment-sensor housing, fiber optic connector, microwave package, heat sink

Hydraulic-valve core, housing, toilet fixture

Fasteners and hardware-aerospace

Piping-valve core, faucet hardware

Safety-fall protection mechanism

Oil and gas-valve components for highly corrosive applications

Techincal Prameter/Model	RVS-336-M	RVS-448-M	RVS-4415-M	RVS-5520-M
Working Area(W*H*L)	300*300*600mm	400*400*800mm	400*400*1500mm	500*500*2000mm
Loading Capacity	150Kg	250Kg	500Kg	1000Kg
MAX Temperature	1550℃	1550℃	1550℃	1550℃
Temperature Uniformity	±3℃	±3℃	±5℃	±5℃
Heating Power	75Kw	90Kw	145Kw	240Kw
Ultimate Vacuum	1Pa	1Pa	1Pa	1Pa
Pressure Rising Rate	0.67Pa/h	0.67Pa/h	0.67Pa/h	0.67Pa/h
Debiding Atmosphere	Ar/N2	Ar/N2	Ar/N2	Ar/N2
Remark:The parameter based on SS material sintering. The data is variable for different material.

Shanghai Geheng Vacuum Technology Co., Ltd. is a vacuum heat treatment furnace manufacturer with many years of experience in design, manufacturing and production. Mainly produce vacuum heat treatment furnace, vacuum sintering furnace, vacuum brazing furnace, New Energy And Environmental Protection Equipment and Vacuum Carbonization Furnace .Provide customized services, equipment work area can be based on customer output.
