Mosi2 Heating Element Heat Treatment Furnace

---

1. Mosi2 heating element introduction

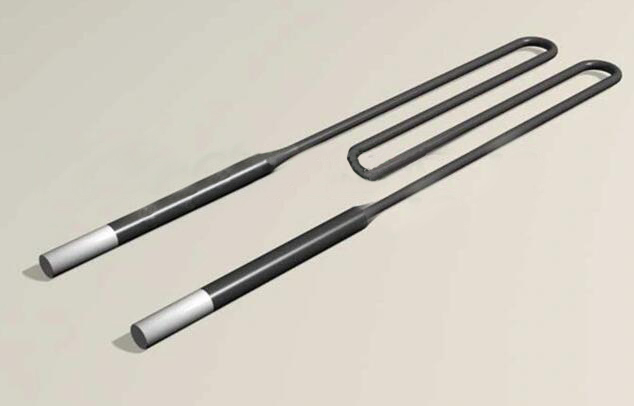

1). MoSi2 heating element is a resistance heating element made of molybdenum disilicide.

2). Mainly used as heaters in high temperature kilns and kilns.

3). It can be used in air and various gas environments.

4). The working temperature of MoSi2 heating element is 1300℃～1800℃.

5). Widely used in metallurgy, glass, ceramic refractory materials, crystal electronic devices, industrial furnace manufacturing and other industries.

2. Different Working Temperature in Different Atmosphere

Atmosphere	The Maximum Using Temperature of Element
	1700 Grade	1800 Grade
NO2,CO2,O2,Air	1700°C	1800°C
He,Ar,Ne	1650°C	1750°C
SO2	1600°C	1700°C
CO,H2	1500°C	1600°C
WetH2	1400°C	1500°C
DryH2	1350°C	1450°C

3. Product Parameters

Models	Effective WorkingDimension (mm)	Max Design Temp.(℃)	Max Working Temp.(℃)	UltimatePressure (Pa)	Pressure Rising Rate(Pa/h)	Temp.Uniformity (℃)	Gas Type
RVS-4411-S	400*400*1100	2400	<2300	6.7*10-1	0.67	±5	N2/Ar
RVS-5512-S	500*500*1200	2400	<2300	6.7*10-1	0.67	±5	N2/Ar
RVS-6615-S	600*600*1500	2400	<2300	6.7*10-1	0.67	±5	N2/Ar
RVS-7720-S	700*700*2000	2400	<2300	6.7*10-1	0.67	±5	N2/Ar
RVS-8825-S	800*800*2500	2400	<2300	6.7*10-1	0.67	±5	N2/Ar
RVS-8522-S	850*850*2200	2400	<2300	6.7*10-1	0.67	±5	N2/Ar

Shanghai Geheng Vacuum Technology Co., Ltd. is a vacuum heat treatment furnace manufacturer with many years of experience in design, manufacturing and production. Mainly produce vacuum heat treatment furnace, vacuum sintering furnace, vacuum brazing furnace, New Energy And Environmental Protection Equipment and Vacuum Carbonization Furnace .Provide customized services, equipment work area can be based on customer output.
