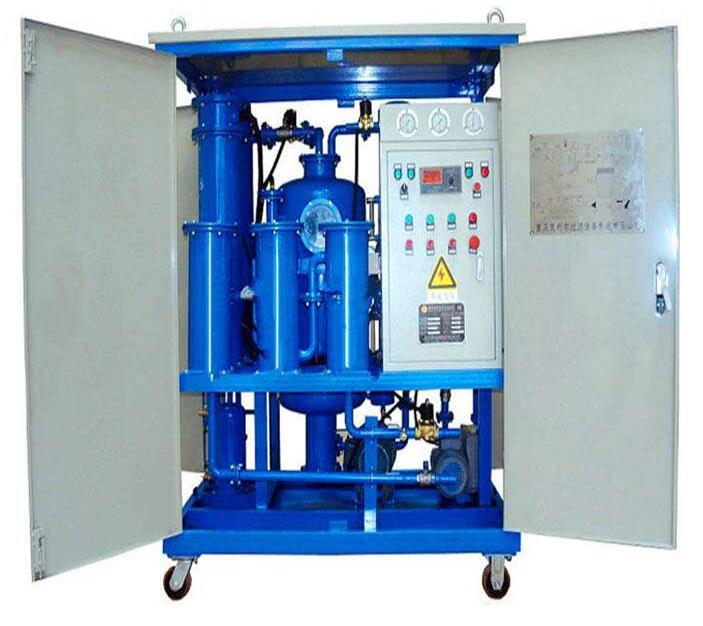

Mechanical Fuel Purifier

---

1. Application Introduction

Coalescence separation oil filter is composed of coarse filter, secondary filter, fine filter, coalescence separation filter, oil pump and electrical control system. They have three functions: 1) filtration and dehydration to remove emulsified water, free water and impurities. 2) It can be used as an oiling machine and is only used to remove impurities in oil.

Working principle: the oil passes through a special filter from outside to inside. Along this direction, the holes of the filter layer become smaller and smaller. Different layers can prevent impurities of different sizes. This design improves the service life and efficiency of the filter. 3) With internal circulation, the operator can replace the coalescence separation filter.

They are usually used as filtration and dehydration systems for turbine oil. It has the functions of high-precision filtration and efficient dehydration, which can effectively remove impurities, emulsified water and free water in oil products, improve oil quality, reduce post-treatment and pollution costs, and reduce maintenance and operation costs.

2. Technical parameter list:

Items			unit	GH-VL-10	GH-VL -20		GH-VL-30		GH-VL-50		GH-VL -100			GH-VL -150		GH-VL-200
flow			L/min	10	20		30		50		100			150		200
vacuum range			Mpa	-0.06～-0.095
working pressure			Mpa	≤0.4
Temperature range			℃	20 ～80
Power Supply				380V 50HZ(or at user’s option)
Noise			dB(A)	≤65～80
Fault-free working hours			h	≥4000
Continuous running hours			h	≥150
Heating power			Kw	36		40		45		60		90	120		180
Total power			Kw	38		42		47		65		96	127		197
Inlet(outlet)diameter			mm	25		25		25		32		42	50		50
weight			kg	350		380		400		450		550	650		700
Outer size		L	mm	1500		1500		1500		1600		1750	1900		1950
		W	mm	1000		1050		1050		1150		1150	1600		1600
		H	mm	1600		1600		1650		1700		1750	1950		1950
After filtration	Anti-emulsifying value		min	≤15/min(GB/F7035)
	Water content		ppm	≤100
	Gas content		%	≤0.1
	cleanliness		NAS1638	≤NAS 6
