LM2 Steel Female Screw Vacuum Heat Treatment

---

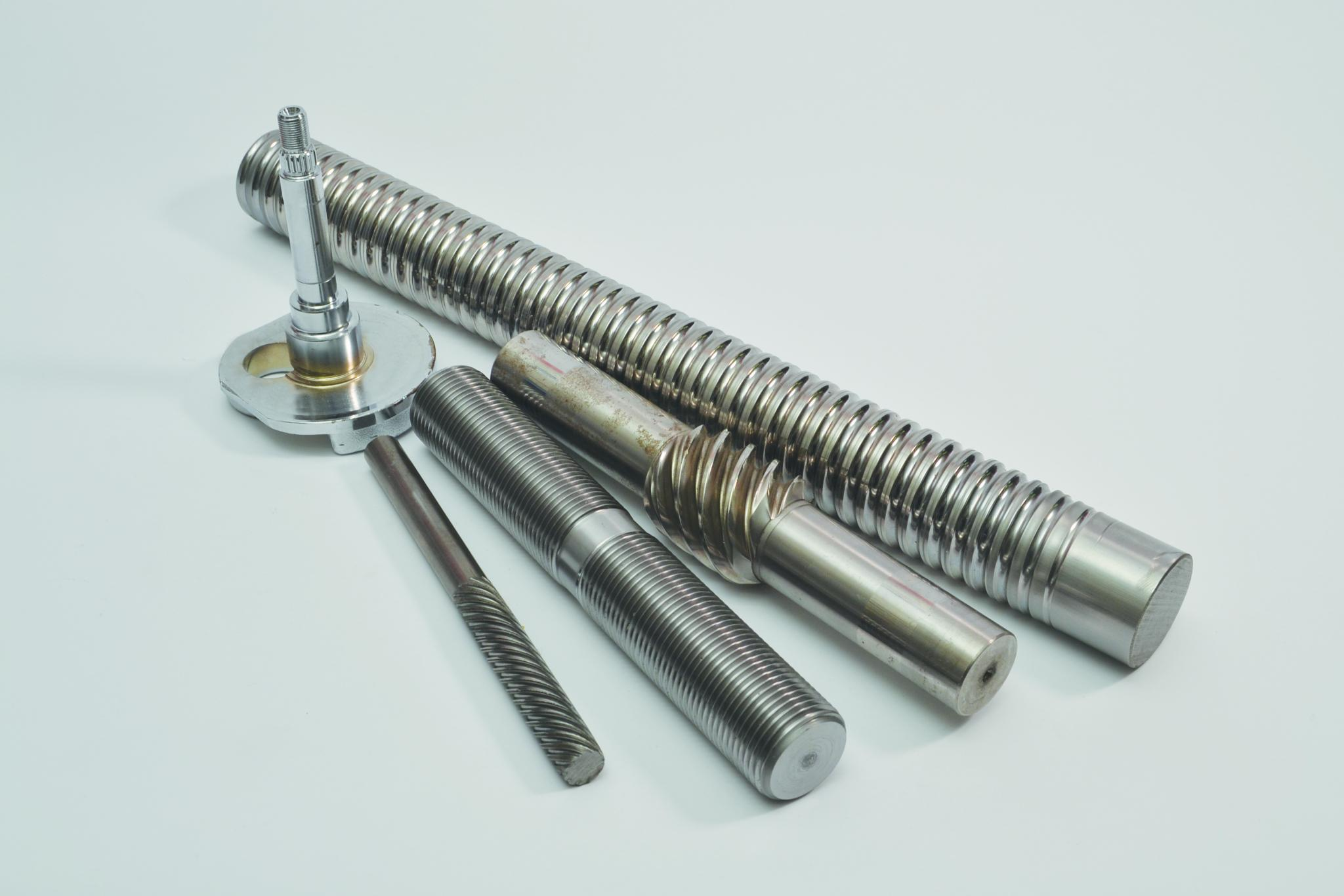

The female screw is used for rolling the thread of the threaded tool. The root of the tooth is subjected to repeated bending stress, which is easy to cause brittle fracture and tooth chipping. Therefore, the vacuum quenching process is used to improve its strength.

Process flow:

The brief process of female screw production is: reforging-annealing-vacuum heat treatment.

Vacuum heat treatment process: heating to 980 degrees Celsius with a vacuum degree of 1×10-2Pa for several minutes, and then heating to 1180 degrees Celsius with a vacuum degree of 1×10-1Pa for several minutes. It is then oil quenched to room temperature. After tempering at 550 degrees Celsius, it is released.

The service life of five batches of vacuum heat treatment molds treated with different processes was evaluated, and it was found that the service life of female screws

Significantly increased. Compared with the steel arc female screw treated by the salt bath furnace, its metallographic structure and hardness value are similar to those of vacuum quenching. However, the service life is very different. The vacuum quenching can roll 35 arc wire plates, while the salt bath quenching can only roll 7 pieces. It can be seen that vacuum quenching can significantly improve the life of the arc female screw.

SIMUWU company is focused on the production and development of vacuum heat treatment equipment and supporting facilities. Provide professional services for manufacturers that require vacuum heat treatment such as the production of female screws.

The VOGQ series vacuum oil quenching furnace produced by SIMUWU is a high-quality product for this kind of processing. It has the characteristics of high vacuum degree, uniform temperature and high temperature control accuracy. Has an experienced team of engineers to provide after-sales services.
