Laboratory Vacuum Drying Oven 220V Hot Air Circulation

---

1. Laboratory Vacuum Drying Oven 220V Hot Air Circulation Characteristics

The drying oven is an improved product of 101A and 101as electric hot air drying oven, which has the following characteristics:

1). Microcomputer PID temperature controller digital display, with stable PID regulation function, accurate temperature control and convenient operation.

2). The intelligent instrument has time control function. The user can set the working time as required, and then automatically stop heating.

3). The box body is made of high-quality cold-rolled steel plate and the surface is painted. The coating is hard and firm with strong anti rust ability. The studio adopts high-quality galvanized plate or stainless steel plate (optional).

4). The multi-layer support can be designed according to the user’s requirements, and the user can adjust the partition height according to the user’s requirements.

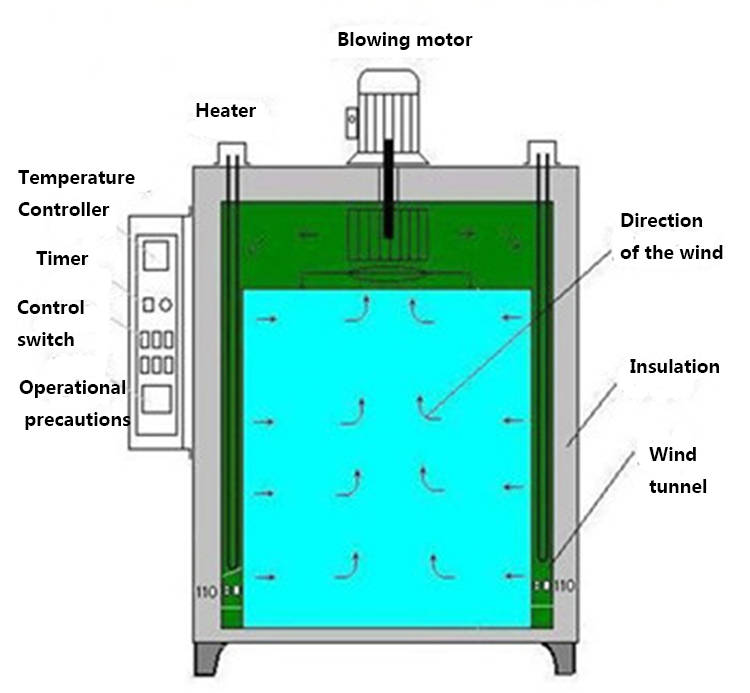

5). The blower model is equipped with independent fan switch and low-noise special fan, which can operate stably for a long time under high temperature; Adjustable new air inlet and exhaust.

6). A double-layer tempered glass observation window is set in the middle of the box door to observe the heated objects in the studio at any time.

7). New high temperature resistant sealing strip, high temperature resistant, bearing oxidation, long service life and convenient replacement.

2. Product Parameter

Model	YPO-1000
Interior dimension W*H*D(cm)	100*100*100
Exterior dimension W*H*D(cm)	116*150*166
Temperature Range	RT +10℃ to +200℃(300℃)
Temp. control accuracy	±0.3℃
Temp. uniformity	±1℃
Temp. resolution	0.1℃
Heat-up time	Less than 30minutes
Material	SUS#304 stainless steel plate for inner chamber(when max. temperature is below 200℃ will use SUS#201),Stainless steel plate+ Power Coated for outside.
Insulation	PU& Fiberglass wool
Wind Circulation	Cooling fan
Heating system	SUS#304 stainless steel high-speed heater
Controller	Button type digital controller
Other Components	Control status indicator, Loading shelves(2pcs, height adjustable)
Safty Devices	Overheating circuit-breaker,overload protection, overload indicator
Power Supply	3 phase 380V 60/50Hz
Customization	Customization of inner chamber size, tempreture range,ect.
