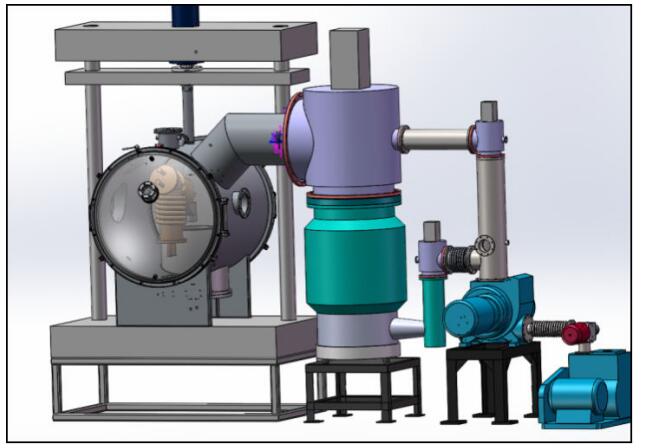

Industrial Impregnation Furnace with Vacuum System

---

1. Product Description

Principle:

It combines vacuum and pressurization.

A: Vacuum: suck out the air in the water tank and wood cells, so that chemicals can be easily absorbed by wood cells.

B: Pressurization: pressure helps chemicals enter wood cells.

Working principle:

A. Initial vacuum: according to the treatment purpose, use a vacuum pump to suck out the air in the tank and wood, and maintain the vacuum state for 15 minutes to 1 hour. The vacuum degree can reach 0.098mpa.

B. Dosing liquid: dosing liquid into the tank under the condition of vacuum pump.

C. Pressurization: when the tank is filled with liquid medicine, pressurize the tank with a pressure pump. The pressure in the tank will slowly rise to the rated pressure, and then keep the tank under the rated pressure until the wood absorbs enough liquid medicine.

D. Pressure discharge: when the material absorbs enough agent liquid, discharge the internal pressure and unabsorbed agent liquid.

E. Final vacuumizing: when the remaining liquid medicine is discharged, use the vacuum pump to suck air from the tank and wood again to make the excess liquid medicine seep from the wood cells or surface to avoid liquid droplets.

2. Specification for choice

Dimensions (mm)	Operating vacuum	Leakage rate	Heating ℃	cooling	Operating pressure (MPa)	Remark
Ф800×1200	≤500Pa	≤100Pa.L/S	optional	optional	≤0.6	Suited for all cases
Ф1200×1600	≤500Pa	≤100Pa.L/S	optional	optional	≤0.6	Suited for all cases
Ф1600×1800	≤500Pa	≤100Pa.L/S	optional	optional	≤0.6	Suited for all cases
Ф1800×2000	≤500Pa	≤100Pa.L/S	optional	optional	≤0.6	Suited for all cases
Ф2000×2200	≤200Pa	≤100Pa.L/S	optional	optional	≤0.6	Suited for all cases
Ф2200×2200	≤200Pa	≤100Pa.L/S	optional	optional	≤0.6	Suited for all cases
Ф2400×2200	≤100Pa	≤100Pa.L/S	optional	optional	≤0.6	Suited for all cases
Ф2500×2500	≤100Pa	≤100Pa.L/S	optional	optional	≤0.6	Suited for all cases
Ф3200×2500	≤50Pa	≤100Pa.L/S	optional	optional	≤0.6	Suited for all cases
Ф3500×3000	≤50Pa	≤100Pa.L/S	optional	optional	≤0.6	Suited for all cases
Ф4000×3000	≤50Pa	≤100Pa.L/S	optional	optional	≤0.6	Suited for all cases
Ф4500×4000	≤50Pa	≤100Pa.L/S	optional	optional	≤0.6	Suited for all cases
Ф5000×2100	≤50Pa	≤100Pa.L/S	optional	optional	≤0.6	Suited for the large scale motors
Ф5400×5500	≤50Pa	≤100Pa.L/S	optional	optional	≤0.6	Suited for the large scale motors
Ф6000×5500	≤50Pa	≤100Pa.L/S	optional	optional	≤0.6	Suited for the large scale motors
Ф8000×6800	≤50Pa	≤100Pa.L/S	optional	optional	≤0.6	Suited for the large scale motors
