Vacuum Graphitization Furnace For Sintering Battery Anode Material

---

1. vacuum graphitization furnace for sintering battery anode material

With the discovery and in-depth application of new carbon materials such as carbon nanotubes, new carbon nanomaterials, flexible graphite, graphene, and carbon materials, they have formed an important and rapidly developing family with a variety of new carbon materials. keep appearing. Various scientific research institutes, enterprises and institutions are also sparing no effort to develop new carbon materials. Aiming at the carbon/carbon new material industry, our company has launched an experimental graphitization furnace for university laboratories, scientific research institutes, and enterprises and institutions. It is especially suitable for all kinds of high-end developers and researchers who have no operating experience, no long-term experience, and no equipment maintenance capabilities, saving them a lot of time and energy, allowing them to focus on various types of development work.

2. Application

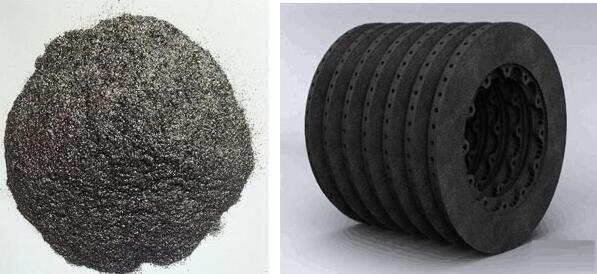

It is mainly used for stone-burning ink of carbon materials, graphitization of PI film, graphitization of heat-conducting materials, sintering of carbon fiber ropes, stone-burning ink of carbon fiber threads, etc.

3. Specification

Models	Effective working Zone	MAXTemperature	Ultimatepressure	Pressurerising rate	TemperatureUniformity	HeatingPower	LoadingCapacity
RVC-669	600*600*900mm(W*H*L)	1500℃	20Pa	0.67Pa/h	±5℃	210Kw	300Kg
RVC-8812	800*800*1200mm(W*H*L)	1500℃	20Pa	0.67Pa/h	±5℃	360Kw	800Kg
RVC-101015	1000*1000*1500mm(W*H*L)	1500℃	20Pa	0.67Pa/h	±5℃	480Kw	1500Kg
RVC-131320	1300*1300*2000mm(W*H*L)	1500℃	20Pa	0.67Pa/h	±5℃	660Kw	3000Kg
RVC-151530	1500*1500*3000mm(W*H*L)	1500℃	20Pa	0.67Pa/h	±5℃	900Kw	5000Kg
RVC-202040	2000*2000*4000mm(W*H*L)	1500℃	20Pa	0.67Pa/h	±5℃	1200Kw	10000Kg
RVC-252550	2500*2500*5000mm(W*H*L)	1500℃	20Pa	0.67Pa/h	±5℃	1800Kw	20000Kg

Shanghai Geheng Vacuum Technology Co., Ltd. is a vacuum heat treatment furnace manufacturer with many years of experience in design, manufacturing and production. Mainly produce vacuum heat treatment furnace, vacuum sintering furnace, vacuum brazing furnace, New Energy And Environmental Protection Equipment and Vacuum Carbonization Furnace .Provide customized services, equipment work area can be based on customer output.
