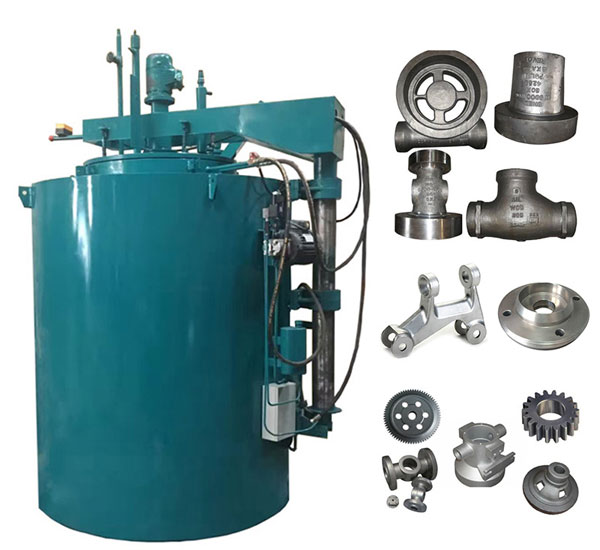

Gas Carburzing Furnace Description :
Gas carburzing furnace is cycle type furnace , rated power is 25~105 KW , rated temperature is 95℃, It’s mainly applicable for carburzing of carbon steel workpiece , this series is based on vertical pit gas carburzing and improved , saving energy .

Gas Carburzing Furnace Technical Parameter:

Model	Temperature Uniformity (Dia x H )(mm)	Rated power （KW）	Power supply		Max . Temperature (℃)	Loading Capacity
			Phase	Voltage (V)
GH-GCF -0304	Ø300 x 450	25	3	380	950	100Kg
GH-GCF -0306	Ø300 x 600	35	3	380	950	150Kg
GH-GCF -0406	Ø450 x 600	60	3	380	950	200Kg
GH-GCF -0409	Ø450 x 900	75	3	380	950	300Kg
GH-GCF -0609	Ø600 x 900	90	3	380	950	400Kg
GH-GCF -0612	Ø600 x 1200	105	3	380	950	650Kg
Remark: The working zone of equipment could be customized base on customer’s production.
