Filter Sintered by Vacuum Furnace

---

Metal sintered mesh filter element parameters:

1) Standard material: SUS316L, 304 or iron-chromium-aluminum fiber;

2) Standard size: 100-1500mm, standard diameter: 25, 32, 40, 50, 65, 80, 100, 150, 180mm, etc. can be customized;

3) The filtering accuracy is: 1-200um;

4) Special specifications can be made according to customer requirements;

5) Interface type: Interface type: 222, 220, 222, 226, 215, M36, M28, M24, M22, M20 standard interface, thread interface, customized interface, tie rod connection, flange connection, quick interface connection.

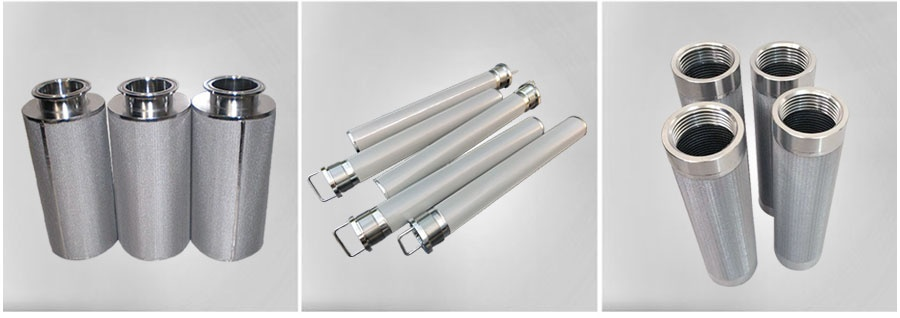

The stainless steel sintered filter is made of multilayer stainless steel filter sintered at high temperature under vacuum. It has high strength and stable structure. After sintering, it still maintains the three-dimensional mesh porous structure of the filter. It has high porosity and uniform pore size distribution. It overcomes the shortcomings of single-layer metal mesh that is fragile and breakable; the powder is fragile and has low flow; the filter paper filter cloth is not resistant to temperature and pressure. It has excellent filtration performance and load strength, and is ideal for high temperature, pressure and pressure resistance. Corrosion, high-precision filter material.

Filter Application

1) Filtration and purification of various polymer melts in the chemical fiber and film industries

2) Filtration of various high temperature and corrosive liquids in the petroleum and chemical industries

3) Precision filtration of various hydraulic oils and lubricating oils for mechanical equipment

4) Clarification and filtration of various gases and liquids in the pharmaceutical, biological, and beverage industries

SIMUWU The following furnace types can be used for vacuum sintering filter.
