Equipment for Producing Silicon Carbide Ceramics Introduction

---

Shanghai Gehang Vacuum Technology Co., Ltd. mainly produces reactive

sintered silicon carbide, pressure-less sintered silicon carbide and its derivatives. It has domestic advanced production processes such as pressureless sintered silicon carbide, reactive sintered silicon carbide water-based spray granulation, and fully automatic press molding. . It mainly produces four major application areas including sealing rings, shaft sleeves, bulletproof armor, nozzles and wear-resistant parts. Widely used in petroleum, chemical, automotive, military, paper, sewage treatment, food, pharmaceutical, nuclear industry and other fields.

SIMUWU company has also developed a high-temperature vacuum sintering furnace, which is used in the production of silicon carbide, silicon nitride and powder metallurgy industries.

Regarding to the production of silicon carbide materials and related process equipment are introduced as follows, hoping to be useful to all customers.

1 Equipment list

NO.	Name	Model	Size
1	Jet mill	QLM-400
2	Dry press forming machine	IR-520	800mm×700mm×1500mm
3	Cold isostatic press	LDJ100/320-300	1280mm×1080mm×1300mm
4	Vacuum Press-less sintering furnace	SIMUWU RVS-8812S	1030mm×1030mm×3000mm
5	Horizontal axis and rectangular table surface grinder	HZ-Y150	350mm×150mm
6	Multi-energy grinding and polishing machine	PW-1B	200mm×300mm×100mm

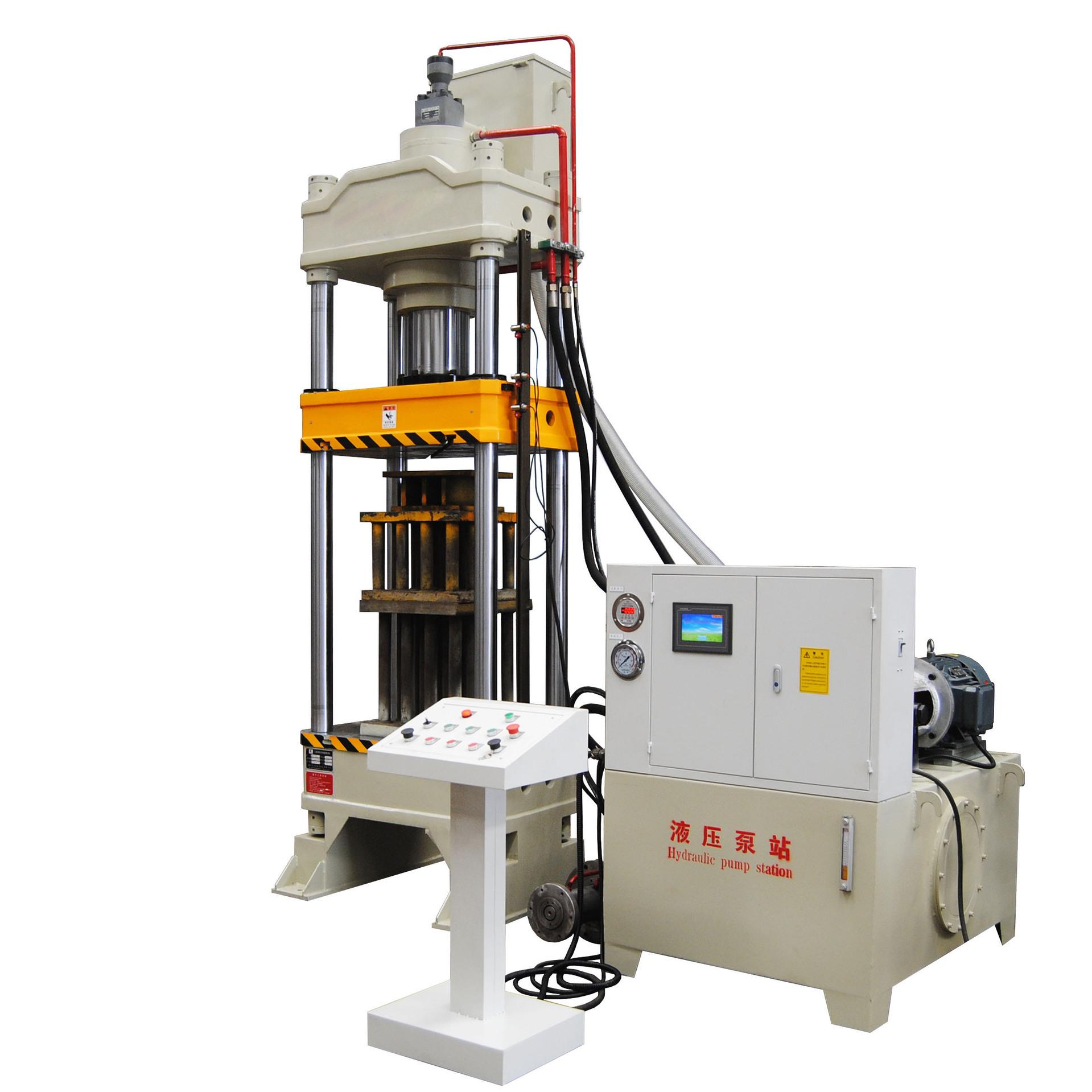

2 Dry press forming machine （IR-520)

Technical Parameter

No.		Unit	Parameter
1	Work pressure	Ton	30
2	Upstroke maximum stroke	mm	110
3	Loading height	mm	80
4	Lower die maximum diameter	mm	115
5	Maximum tablet diameter	mm	65
6	Output	—	20-35
7	Product error	mm	±0.02
8	Motor Power	kw	4
9	Physical dimension	mm	2100×1050×1000

Structure

Dry pressing machine hand wheel, dynamic pressure wheel, constant pressure wheel, cycloidal pin wheel, reducer, motor, etc. Suitable for pressing ceramics, magnetic materials and other materials. This machine has a high degree of automation, and has the characteristics of saving materials, labor, time, and multi-purpose while improving productivity in safe production. It is the first choice for dry-pressed ceramic and magnetic material molding machines. The machine has high precision, stable tableting, good performance and high yield. The fully automatic ceramic forming machine produced by Jingrei Machinery Factory is controlled by PLC. The time of each action is input through text and all can be adjusted. It can be automatically demolded, and the gate can be cleaned automatically without manual cleaning. Standardized mold base design, automatic mold matching, so that the mold replacement time is shorter.
