epoxy resin casting equipment

---

1.Purpose of static pouring tank: epoxy resin pouring for transformer coil.

2.Epoxy resin casting equipment main structure&steps

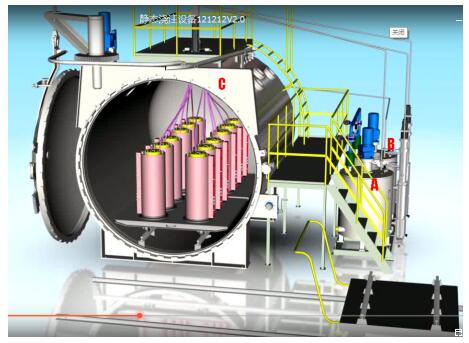

1）A and B are mixing tanks used for stirring and degassing epoxy resin and curing agent.Double structure, from the bottom of hot water to the top irrigation circulation flow.The temperature of A and B tanks must be well controlled, because the temperature is too low to degasse well, and the material will solidify if the temperature is too high.

2）After degassing is completed, the metering pump shall, according to a certain metering, gather the epoxy resin and curing agent of tank A,B to the top end of tank C for mixing respectively through pipelines, and then flow into each transformer coil through the connected pipeline until the transformer coil grinding tool is filled with mixed materials.

3）Keeps the temperature of 75 ℃, usually 200 pa dry the vacuum degree of 4 to 8 hours (time) according to the craft

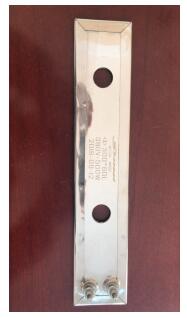

There are heating plates (inner heating wire, outer stainless steel structure) on both sides of the C tank furnace body to complete the pouring.

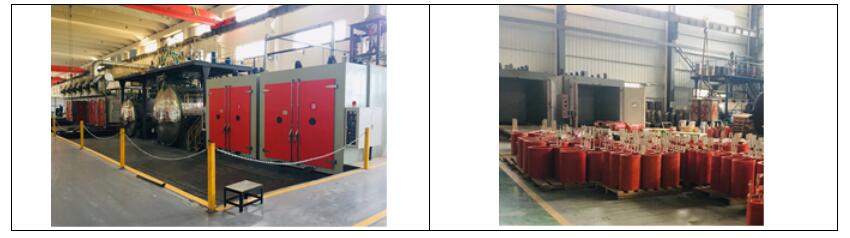

4）Drying after pouring, due to take off the membrane, into the curing oven drying processing (usually 120-140℃, according to the process and decide) a epoxy resin casting device generally requires at least two curing furnace.

The temperature of the vacuum pouring tank must be controlled to ensure the fluidity of the mixture of epoxy resin and curing agent.

3.What equipment does the heating system have to match to maintain its temperature uniformity?

Each heater is equipped with circulating pump, ethylene glycol, adding water as the working medium, low input and high, so that it is very even, the pouring tank directly heats the plate affixed to the tank body.
