Dynamic Mixing Vacuum Resin Casting Machine

---

1. Product Application

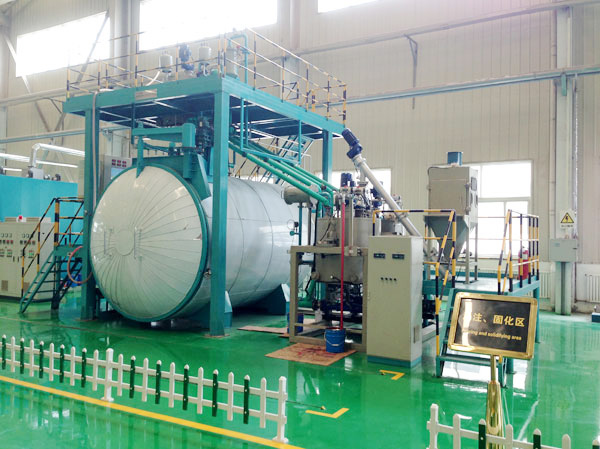

Vacuum resin pouring machine is specially used to produce dry-type transformer, bushing, dry-type reactor, high-voltage switch insulation and related electrical products. It is mainly composed of charging tank, mixing tank, metering device, vacuum pouring tank, vacuum pump system, heating system, control system, etc. it is suitable for bisphenol A, outdoor resin, polyurethane, etc.

2. Main Features

1) Perfect vacuum pump system ensures high production quality.

2) Reliable material measurement system for precision feeding.

3) Advanced material preheating and casting solidification heating technology.

4) Automatic PLC control, touch screen operation.

5) It is easy to operate and has complete functions of parameter display, recording and alarm.

Vacuum Casting Equipment Specifications
casting tank size (mm)	limit vacuum (Pa)	working pressure (Mpa)	measuring type	controlling
φ2000 x2200	≤50	≤0.4 or normal pressure	electronic scale	PLC + touch screen
φ2400 x3000	≤50	≤0.4 or normal pressure	electronic scale	PLC + touch screen
φ2500 x3500	≤50	≤0.4 or normal pressure	electronic scale	PLC + touch screen
φ3000 x3500	≤50	≤0.4 or normal pressure	electronic scale	PLC + touch screen
φ3200 x3500	≤50	≤0.4 or normal pressure	electronic scale	PLC + touch screen
