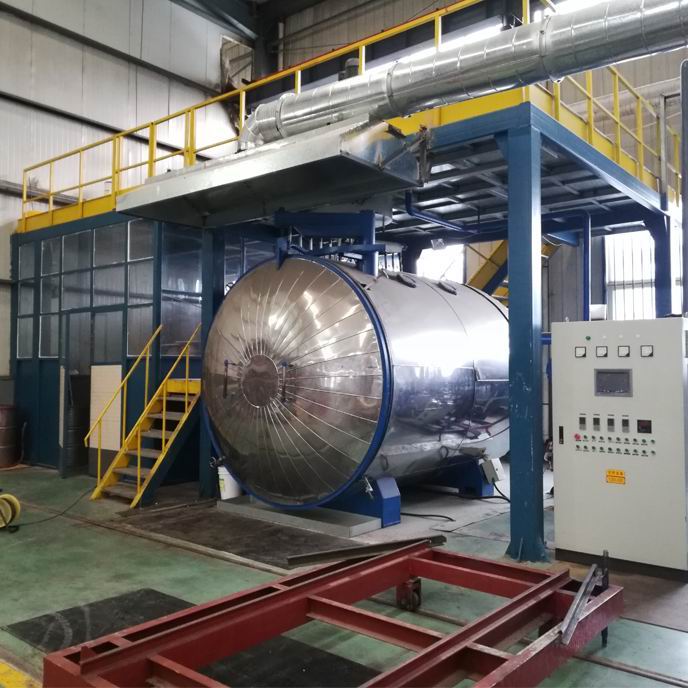

Dry-type Transformer Dynamic Mixing Vacuum Resin Casting Machine
1. The main technical requirements are as follows
The effective dimensions of the die casting tank are: φ 2400mm x 3000mm (horizontal); effective volume of final mixing tank: 400L
The equipment is applicable to the two-component epoxy resin formula with filler. The ratio of resin (or cured material) + filler shall not exceed 1:1.3-1.6, and the viscosity of the mixture shall not exceed 4000 centipoise. (if the mixture does not meet the requirements or there is no filler, the special design shall be reported in advance).
Annual production capacity: 1 million KVA.
2. Equipment system composition
No.
Name
Quantity
1
300 liter resin premix degassing tank and material processing system
1 set
2
300 liters of curing material premix degassing tank and material processing system
1 set
3
Electronic weighing system
2 sets
4
400 liter final mixing tank
1 set
5
Vacuum pressure casting tank
1 set
6
Heating system
4 sets
7
Vacuum system
2 sets
8
Computer control system
1 set
9
Cooling water system
1 set
10
Pneumatic and pressurized systems
1 set
11
Casting material conveying system
2 sets
12
Steel frame platform (steel frame materials provided by users, designed and manufactured by our company)
13
Reserve the interface of the silicon powder processing system, and install it when necessary.
3. Technical indicators and parameters
No.
Name
parameters
1
Casting tank size
φ2400mm x 3000mm
2
Pumping speed of vacuum system main pump
300L/S
3
Working temperature of casting tank
70~85℃
4
Cold ultimate vacuum degree of casting tank
≤30Pa
5
Working vacuum degree of casting tank
100~300Pa
6
Leakage rate of casting tank
≤50Pa. L/S
7
Working pressure of casting tank
0~0.6MPa
8
This equipment adopts electronic scale to measure and high-viscosity conveying pump to convey materials.
9
This equipment uses dynamic mixer to mix materials and adopts film degassing technology.
10
This equipment has computer program control and manual control. Automatically record material tank, casting tank, mold temperature, vacuum degree.
11
Each mixing tank adopts electric heating, heat-conducting oil is used as heat transfer medium, and the temperature is controlled automatically.
12
Using vacuum casting + pressurization process, the maximum rated design pressure of the casting tank is 0.6MPs
