Drilling Components Brazing

---

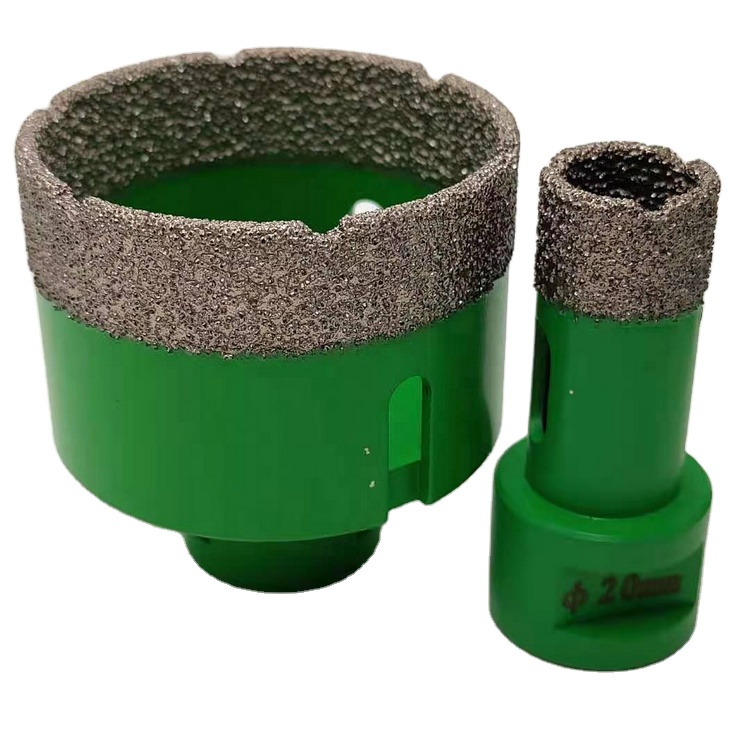

Vacuum Brazed Diamond Drill Bit

This vacuum brazed diamond drill bit is mainly used for drilling granite, marble, concrete and walls.

With years of advanced diamond brazing technology, serrated drills have the characteristics of drilling freedom, high efficiency, and long drilling life.

1. Features of ceramic tile diamond core bits

The integral type provides smooth cutting and prevents fragments from loosening. High-quality diamond guarantee

Sharpness and life.

* Drilling is fast, stable and long life;

* competitive price

* Excellent performance and durability.

* Gravel: #30, #40, #50, according to customer requirements

* Thread: M14 & Hexagonal Shank

* Diamond tip height: 10mm, 15mm

* Diameter: 6mm-150mm

2. Advantages of diamond tool cutting bits

1) Suitable for stone, concrete, brick, ceramic tile, glass, fiberglass, etc.

2) Good safety, fast speed, high efficiency, complex shape

3) The service life is longer than that of electroplating tools.

4) Various diamond particles and grades to meet various applications-cutting, drilling, grinding.

5) Environmental protection

3. Application

Brazed diamond drill bits are mainly used for drilling granite, marble, ceramics, walls, etc., both dry and wet.

High efficiency, long service life and good chip removal performance. It can be installed in angle grinders and any pistol drill.

4. Main technical parameters(Model: RVB-0204)

Parameter	Dimensions：about D2100/W1600/H1800mm
	Equipment weight：1600Kg
	Equipment power：28Kw
	Voltage:380V
	Frequency:50HZ
Heating	Heating power:25KW
	Max temperature: 1300 ℃
	Working temperature: ≤1200 ℃
	Working area size: Φ200 * H400 mm
	Heating chamber structure: Vertical, bottom lift feed in and out
	Heater material structure: Molybdenum sheet, annulus
thermal insulation	Insulator Material: Molybdenum sheet
	Characteristic: Good ventilation, high cleanliness, quick heating
Gas atmosphere	Nitrogen, argon and a small amount of hydrogen
	Inflation pressure: ≤0.02MPa
	Flow gauge: Float flowmeter Range Optional
	Also equipped with pressure sensors, solenoid valves and other accessories.
Control	Control Center: 10-inch LCD touch screen MCGS
	Temperature control instrument: AI-518P
	Thermometric element: OMEGA Imported N type thermocouple
	Thermometric: OMEGA Imported N type thermocouple safety interlooking
	Main electrical parts: Schneider or OMRON or ABB etc
	Other accessories: Ammeter, voltmeter, power regulator,transformer
Cooling	The furnace body is double-layer water cooled structure, the waterway is composed of various pipeline valves, the branch uses black rubber water pipe, and the stainless steel joint. Connected to the furnace body, furnace cover, furnace bottom, water-cooled electrode, molecular pump and other areas. Also equipped with electric contact pressure gauge and the waterway manual valve
Safety	Ultra-light sound and light alarm and power off
	Equipment bottom support: Foma wheel, can be removed or fixed

Shanghai Geheng Vacuum Technology Co., Ltd. is a vacuum heat treatment furnace manufacturer with many years of experience in design, manufacturing and production. Mainly produce vacuum heat treatment furnace, vacuum sintering furnace, vacuum brazing furnace, New Energy And Environmental Protection Equipment and Vacuum Carbonization Furnace .Provide customized services, equipment work area can be based on customer output.
