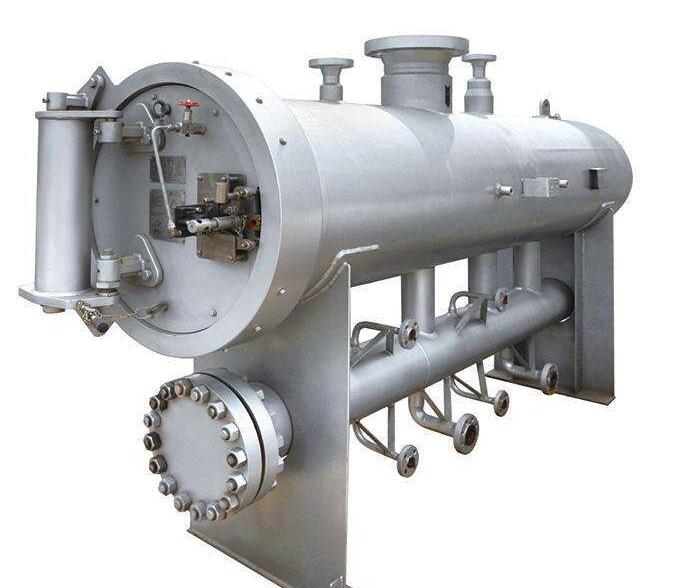

Coalescence Separation Oil Purifier, Fuel Oil Water Separator Factory

---

The coalescence separation oil filter dehydrates through two kinds of filter elements.

The coalescence filter turns the free and dissolved water from small molecules into macromolecules, and then the separation filter removes the water droplets, which fall into the water tank under the action of gravity. It removes particles through the filter and cleanliness to reach the stage of NAS grade 6.

Coalescence dehydration oil-water separator is suitable for online operation of light oil, turbine oil, lubricating oil and other systems, and coalescence dehydration oil-water separator is especially suitable for water leakage system.

Coalescence separation oil purifier features

1. The pipeline and water tank of the purifier can be stainless steel or carbon steel.

2. The oil-water interface detector is used to monitor the water level and discharge water automatically.

3. The electrical system is controlled by PLC (with touch screen). The working status of each component is clear at a glance. Monitoring, alarm, action control and safe shutdown make the oil filter run online.

4. German brand oil pump has good sealing quality, low noise and long service life.

5. Multi layer filtration can remove impurities through coarse filtration, protective filtration and fine filtration. The particle size test is very good, reaching nas6).

Coalescence Separation Oil Purifier Parameters

item		unit	GH-CS-10	GH-CS-20	GH-CS-30	GH-CS-50	GH-CS-80	GH-CS-100
Flow rate		L/min	10	20	30	50	80	100
Working pressure		Mpa	≤0.3
power			380V 50HZ(or at user’s option)
noise		dB(A)	≤65～80
Fault-Free Working hours		h	≥4000
Continuous running hours		h	≥150
Total power		Kw	0.75	0.75	0.75	2.2	2.2	3
weight		kg	80	90	105	135	150	185
Outer size	L	mm	700	700	700	850	800	1000
	W	mm	570	570	600	650	650	700
	H	mm	550	600	650	750	800	850
After filtration	Demulsifying value	min	≤15/min(GB/F7035)
	Water content	ppm	≤100
	cleanliness	NAS1638	≤NAS 6
