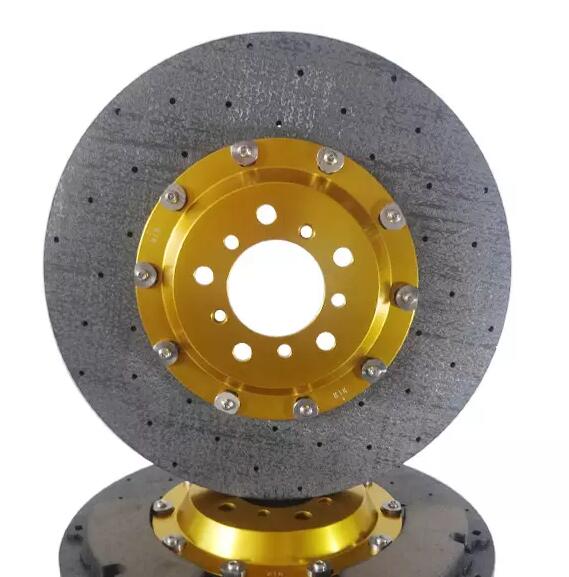

Carbon Brake Disk Sinter

---

1. Carbon Brake Disk Sinter Characteristic

Superior braking feeling, sensitive response and advanced production technology can effectively solve the noise and jitter.

High heat resistance, shortening braking distance by 20% – 30%, stable braking. Ensure your safety, even at high speed or emergency braking.

The braking distance is shortened by 20% – 30%, which is safer.

The braking force remains stable under extreme conditions.

Excellent chemical stability and corrosion resistance.

The maximum service temperature of carbon ceramic brake disc is 1420c, and that of steel brake disc is 600C.

2. Vacuum Sintering Furnace Technical Parameter :

RVS-S SiC Vacuum Debinding&Sintering Furnace
Models	Effective WorkingDimension (mm)	Max Design Temp.(℃)	UltimatePressure (Pa)	Pressure Rising Rate(Pa/h)	Temp.Uniformity (℃)	Gas Type
RVS-335-S	300*300*500	2300	6.7*10–1	0.67	±5	N2/Ar
RVS-446-S	400*400*600	2300	6.7*10–1	0.67	±5	N2/Ar
RVS-557-S	500*500*700	2300	6.7*10–1	0.67	±5	N2/Ar
RVS-669-S	600*600*900	2300	6.7*10–1	0.67	±5	N2/Ar
RVS-7710-S	700*700*1000	2300	6.7*10–1	0.67	±5	N2/Ar
RVS-8812-S	800*800*1200	2300	6.7*10–1	0.67	±5	N2/Ar
RVS-9915-S	900*900*1500	2300	6.7*10–1	0.67	±5	N2/Ar
RVS-5512-S	500*500*1200	2300	6.7*10–1	0.67	±5	N2/Ar
RVS-6615-S	600*600*1500	2300	6.7*10–1	0.67	±5	N2/Ar
RVS-7720-S	700*700*2000	2300	6.7*10–1	0.67	±5	N2/Ar
RVS-8825-S	800*800*2500	2300	6.7*10–1	0.67	±5	N2/Ar
Remark: The working zone of equipment could be customized base on customer’s production. The data based on empty, cold furnace.

Shanghai Geheng Vacuum Technology Co., Ltd. is a vacuum heat treatment furnace manufacturer with many years of experience in design, manufacturing and production. Mainly produce vacuum heat treatment furnace, vacuum sintering furnace, vacuum brazing furnace, New Energy And Environmental Protection Equipment and Vacuum Carbonization Furnace .Provide customized services, equipment work area can be based on customer output.
