Automatic Vacuum Epoxy Resin Casting Equipment

---

1. Description of vacuum epoxy resin pouring equipment

The equipment is specially used for epoxy resin cast dry-type transformer, bushing, current transformer, voltage transformer, high-voltage switch insulator, arc isolating coil and other electrical equipment.

It is suitable for casting with filler and without filler.

It is suitable for degassing, mixing and pouring of bisphenol A, outdoor epoxy resin, polyurethane and other polymer materials under vacuum.

It is not only suitable for processing the mixture added by users, but also suitable for the processing of two-component premixed filling, which is very flexible.

The equipment system can be increased or decreased according to user requirements. It can be modular assembly. It has the characteristics of convenient installation, simple operation and high degree of automation.

2. Main features of our vacuum epoxy resin pouring equipment

Perfect vacuum system: the whole process is carried out under vacuum conditions.

Reliable metering system: according to different process requirements, there are two metering methods:

1) Feeding pump + electronic scale (for pouring with filling)

2) Metering pump + static mixer (for casting various products)

Advanced and safe heating technology:

1) The mixing tank adopts heating mode, with good temperature uniformity and high temperature control accuracy

2) The casting tank is directly heated by an electric heating plate

Advanced and reliable metering and control system: computer control, interlocking control of key processes and error prone operators; Process modification, process curve recording and process parameter adjustment can be easily realized by computer. The whole metering control and vacuum control are fully preset and automatic.

3. Classification of vacuum epoxy resin pouring equipment of our company

Basic vacuum (pressure) casting equipment

Dynamic hybrid vacuum (pressure) casting equipment

Static mixed vacuum (pressure) casting equipment

4. Technical parameters of vacuum epoxy resin pouring equipment

We have three modes of vacuum epoxy resin pouring machine: basic, semi-automatic and full-automatic.

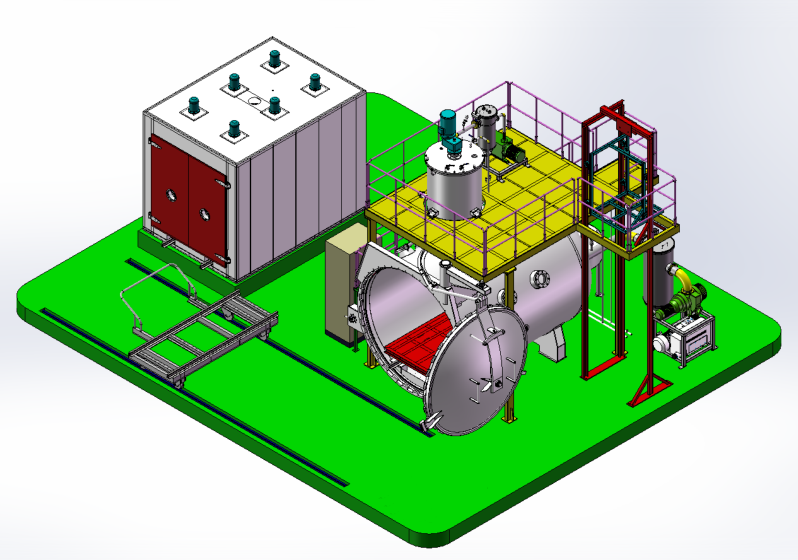

The following is the layout of the basic vacuum resin pouring machine:

The detailed specifications of vacuum resin pouring machine will be determined according to your required degree of automation, coil size, productivity, etc.
