2200℃ Vacuum Furnace

---

2200℃ Vacuum Diffusion Welding Furnace

1. Features

Insulation screen has two layers of molybdenum, four layers of stainless steel composed of all-metal radiation screen structure. Heating element for the wide molybdenum belt, along the walls around the uniform layout, in order to ensure temperature uniformity.
Pressure device has hydraulic station, cylinder, head, load cell, pressure controller and pressure bracket composition,which can achieve hydraulic pressure protection, pressure setting control.

The electronic control system adopts the PLC and the programmable temperature controller to realize the automatic, semi-automatic and manual control modes, and the operation is flexible.

2. Application

The 2200℃ vacuum diffusion welding furnace is mainly used for the diffusion welding of metal materials and ceramic materials. The heat shield of the vacuum diffusion welding furnace has an all-metal radiation shield structure composed of two layers of molybdenum and four layers of stainless steel. The heating element is a wide molybdenum belt, which is evenly arranged along the front, rear, left, and right walls to ensure the uniform temperature of the furnace. The excitation device is composed of a hydraulic station, a cylinder, a pressure head, a load cell, an excitation controller and a pressure excitation bracket, which can realize oil pressure maintaining and pressure excitation setting control. The electric control system adopts PLC and programmable temperature controller to realize three kinds of control modes: automatic, semi-automatic and manual, and the operation is flexible.

2. Product Parameter

Model	Working Zone (W*H*L)	Max. Temperature ℃	Ultimate Pressure Pa	Heating Power KW	Uniformity ℃	Pressure Rising Rate Pa/h	Loading Capacity
RVD-222	250*250*250mm	2200℃	Metal Screen 6.7*10-4PaGraphite Screen 5*10-3Pa	30KW	±5℃	Less than 0.5pa/h	30Kg
RVD-333	300*300*300mm			40KW			50Kg
RVD-556	500*500*600mm			210KW			250Kg
RVD-557	500*500*700mm			230KW			300Kg
RVD-667	600*600*700mm			270KW			400Kg
RVD-V0510	Φ500*1000mm			240KW			200Kg
Remark	Heating Elements: Graphite roads or plate; Metal Moly; Tungsten Insulator Layer: Graphite Felt; Metal Screen(Moly+ Stainless Steel) Press Force:300 Ton

2200℃ Powder Metallurgy Vacuum Sintering Furnace

1. Application

Powder Metallurgy Vacuum Sintering Furnace takes high temperature vacuum sintering furnace is used in Sm-Co, AlNiCo, metal mesh, cemented carbide, ceramic materials, photoelectric coating materials, graphite purification, magnet material and rare refractory metals, alloys (tungsten, Mo, W-Cu alloy) vacuum sintering process, also support atmosphere sintering. Max temperature could be achieve 2200C. This equipment was based on international excellent equipment technology, after many times improvement.

The control system of vacuum furnace was controlled by PLC, temperature was controlled by intelligent temp controller, accurate control, high automation. User can choose auto or manual undisturbed switching to operate it, this furnace has abnormal condition alarming function, easy to operate.

2. Features

(1) Strict vacuum sealing

The sintering or heat treatment of metal products is carried out in a closed vacuum furnace. Therefore, obtaining and maintaining the original leakage rate of the furnace and ensuring the working vacuum of the vacuum furnace are of great significance to ensuring the quality of the products. In order to ensure the vacuum of the vacuum furnace Performance, the basic principles that must be followed in the design of a vacuum furnace are: the furnace body should be air-tight welded; the furnace body should be opened as little as possible; the dynamic seal structure should be used less or avoided to minimize vacuum leakage; installed in the furnace body The above accessories, such as water-cooled electrode, thermocouple lead-out device, must be designed with a sealed structure.

(2) Heating and heat insulation materials can only be used under vacuum

The heating and insulation materials of the vacuum resistance furnace work under high-temperature ballast. These materials have requirements for high temperature resistance, low vapor pressure, good radiation effect, and low thermal conductivity. The requirements for oxidation resistance are not high, and vacuum resistance furnaces are widely used. Tungsten, molybdenum, tantalum, and graphite are heating and insulating materials, and these materials are very easy to oxidize in the atmosphere, and conventional resistance furnaces generally do not use them as heating materials.

(3) Cooling device

The furnace shell and cover of the vacuum furnace, the electric heating element lead-out device (water-cooled electrode), and the intermediate vacuum insulation department are all working in a vacuum and heated state. In order to ensure the structural deformation of each component, the vacuum sealing ring is not overheated without burning, and the components The water cooling device should be set according to different conditions to ensure the normal operation of the furnace and sufficient service life.

(4) Use low voltage and high current

When the vacuum is in the range of 0.1-100pa, the energized conductor will produce a glow discharge phenomenon at a higher voltage, and serious arc discharge will cause the heating element, heat insulation layer, etc. to be burned. Therefore, the working voltage of the electric heating element of the vacuum furnace- Generally, it does not exceed 80-100V. At the same time, some effective measures should be taken when designing the structure of the electric heating element, such as avoiding sharp parts as much as possible, and the electrode spacing should not be too small.

3. Product Parameter

Model: RVS-8812H

Uniform Temperature Zone : 800*800*1200mm（W*H*L）

MAX Temp : 2200℃

Ultimate pressure: 2*10-3Pa

Pressure rising rate: 0.5Pa/h

Temp Uniformity : ±5℃

Loading capacity: 1000Kg

2200℃ Carbide Cutting Tool Sintering Furnace

1. Application

Carbide is widely used as tool materials, such as turning tool, milling cutter, planer, drill, boring tool, etc., for cutting cast iron, non-ferrous metal, plastic, chemical fiber, graphite, glass, stone and common steel, can also be used for cutting heat resistant steel, stainless steel, high manganese steel, tool steel and other difficult to process materials.

2. 2200℃ Carbide Cutting Tool Sintering Furnace Product Parameter

Models	Effective Working Dimension (mm)	Max Temp. (℃)	Ultimate Pressure (Pa)	Pressure Rising Rate (Pa/h)	Temp. Uniformity (℃)	Loading Capacity (kg)
RVS-226-H	200x200x600	1600/2200	6.7*10–3	0.67	±5	60
RVS-335-H	300x300x500	1600/2200	6.7*10–3	0.67	±5	100
RVS-446-H	400*400*600	1600/2200	6.7*10–3	0.67	±5	200
RVS-557–H	500*500*700	1600/2200	6.7*10–3	0.67	±5	300
RVS-669-H	600*600*900	1600/2200	6.7*10–3	0.67	±5	500
RVS-7710-H	700*700*1000	1600/2200	6.7*10–3	0.67	±5	700
RVS-8812-H	800*800*1200	1600/2200	6.7*10–3	0.67	±5	1000
RVS-9915-H	900*900*1500	1600/2200	6.7*10–3	0.67	±5	1200

 2200℃ Induction Coil Heating Vacuum Hot Press Sintering Furnace

1.  Application

Hot press sintering of metal and ceramic powder.

Ceramic/metal composite and intermetallic compound preparation.

Research and development of diffusion welding technology.

Densification and hot press sintering of oxygen/nitrogen/boron/carbon compounds and their mixtures.

2. Product Parameter

2200℃ Induction Coil Heating Vacuum Hot Press Sintering Furnace

Model	Effective Working Zone	MAX Temperature	Ultimate Vacuum	Frequency	Press Force
IVH-100	200×250mm	2200℃	7*10-3Pa	2500HZ	100T
IVH-150	300×300mm	2200℃	7*10-3Pa	2500HZ	150T
IVH-200	400×450mm	2200℃	7*10-3Pa	2000HZ	200T
IVH-250	500×700mm	2200℃	7*10-3Pa	2000HZ	250T
IVH-300	560×800mm	2200℃	7*10-3Pa	1500HZ	300T
IVH-400	700×950mm	2200℃	7*10-3Pa	1500HZ	400T
IVH-600	900×1200mm	2200℃	7*10-3Pa	1000HZ	600T

2200℃ Top Loading Vacuum Sintering Furnace

1. Application

Vacuum induction sintering furnace working under vacuum or protective atmosphere conditions to achieve sintering of carbide, metal dysprosium, ceramic materials etc.

2. Product Parameter

2200℃ Top Loading Vacuum Sintering Furnace

Model: RVS-T1010

Uniform Temperature Zone :  φ1000*1000mm(vertical)

MAX Temperature: 2200℃

Ultimate pressure: 2*10-3Pa

Pressure Rising Rate: 0.5Pa/h

Temp Uniformity: ±5℃

Loading capacity: 1000Kg

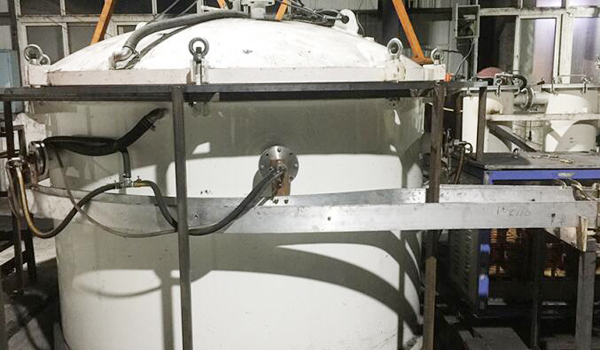

2200℃ Graphite Felt Carbonization Furnace

1. Application

It is mainly used for high temperature treatment of carbon/carbon composites, hard insulation blankets, cured felts, carbon fiber insulation materials, graphite products, etc. It is also used for graphitization of other materials. A single carbonization is usually used in the prior art 2200℃ Graphite Felt Carbonization Furnace changes the temperature to realize the low-temperature and high-temperature carbonization of the raw fiber, or separately sets the low-temperature carbonization furnace and the high-temperature carbonization furnace to process the raw fiber separately. At the time, the corresponding carbon felt raw materials are usually processed first, and carbon felt is usually made from raw fiber through needle punching, pre-oxidation, carbonization and other production processes. The processing effect of the medium carbonization process has an impact on the quality of the product carbon felt.

2. Characteristics

2.1 Hard felt PAN-based carbon felt or graphite felt as the matrix material, after special bonding, curing, shaping, carbonization, high temperature processing. Good shape retention, self-supporting, small specific gravity, no fluff off, high surface finish, low thermal conductivity, high temperature resistance, good thermal shock resistance (no cracking, no deformation in long-term use), long service life, Easy to install and replace, the use of temperature up to 2200 °C. It is the ideal new thermal insulation material for high temperature vacuum equipment and non-oxidation atmosphere high temperature equipment.

2.2 Applicable to various furnace types such as vacuum high pressure gas quenching furnace, vacuum sintering furnace, pressurized vacuum sintering furnace, monocrystalline silicon furnace, polycrystalline silicon furnace, silicon carbide recrystallization furnace, etc. Can be processed according to user requirements, processing tolerance is small, to provide flat, disc, cylinder and other shapes of products.

2.3 This vacuum carbonization furnace is a furnace designed specifically for the carbonization of domestic carbon material insulation materials. It is mainly used for the carbonization and graphitization of carbon felt, hard felt, graphite hard felt, and hard felt drums, firing Plates and drums.

3. Product Parameter

Type：IVG-1500CF

Loading space size（MM）：□2500X2500X5000

Design tempreture：2300℃

Rated temperature：2200℃

Heating voltage（V）：50

Power（KW）:1500

Ultimate vacuum（Pa）：20

Temperature uniformity:±15℃

Loading weight(KG):15000

Shanghai Geheng Vacuum Technology Co., Ltd. is a vacuum heat treatment furnace manufacturer with many years of experience in design, manufacturing and production. Mainly produce vacuum heat treatment furnace, vacuum sintering furnace, vacuum brazing furnace, New Energy And Environmental Protection Equipment and other vacuum equipments.Provide customized services, equipment work area can be based on customer output.
