17-4ph, h900 Oil Quenching Furnace

---

17-4PH is precipitation hardening steel, the implementation standard: ASTM A564/A564M-2013

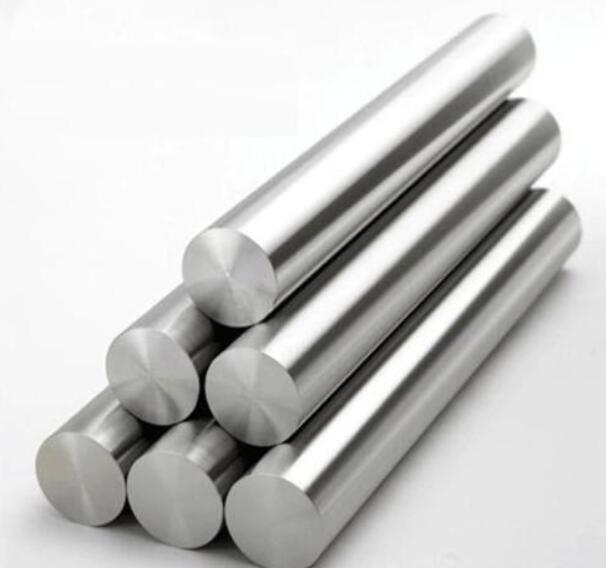

1. 17-4ph Product Features

17-4PH alloy is a precipitation, hardening, martensitic stainless steel composed of copper, niobium/columb. This grade has high strength, strength (up to 3000 C/572o F) and corrosion resistance. After heat treatment, the mechanical properties of the product are more perfect, and the compressive strength can reach as high as 1100-1300 mpa (160-190 ksi).

17-4PH has high strength, high hardness, good welding performance and corrosion resistance. It has been widely used in valves, shafts and chemical fiber industries, and high-strength parts with certain corrosion resistance requirements.

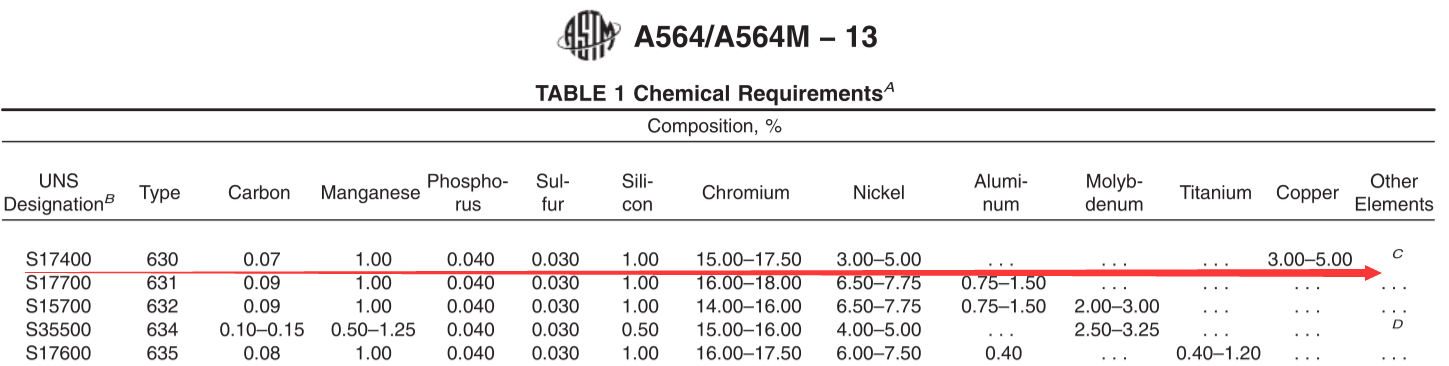

2. 17-4PH Chemical Composition Diagram

3. 17-4ph, h900 Heat Treatment Process

Preheating heating temperature: 850±10℃

Holding time: 35±5min2

Solution heating temperature: 1040±5℃

Holding time: 80±5min;

Vacuum degree: 1～30Pa;

Oil temperature: 25～70℃

Oil retention time: 10±2min3

Immerse the cleaned parts at 80～100℃

Cleaning tank ①Clean for 20～30min out of the tank and immerse into the 20～40℃ rinsing tank ②Rinse for 2～5min out of the tank to dry or blow dry

Aging heating temperature: 480±5℃

Holding time: 250±10min

Air-cooled room temperature

4. 17-4ph, h900 Oil Quenching Furnace

Model	Temperature Uniform Size(W*H*L)	MAX. Temperature	Ultimate Pressure	Temperature Uniformity	Loading Capacity
VOGQ-446-2	400*400*600mm	1300℃	4*10-1Pa/6.7*10-3Pa	±5℃	200Kg
VOGQ-557-2	500*500*700mm	1300℃	4*10-1Pa/6.7*10-3Pa	±5℃	300Kg
VOGQ-669-2	600*600*900mm	1300℃	4*10-1Pa/6.7*10-3Pa	±5℃	500Kg
VOGQ-7710-2	700*700*1000mm	1300℃	4*10-1Pa/6.7*10-3Pa	±5℃	700Kg
VOGQ-8812-2	800*800*1200mm	1300℃	4*10-1Pa/6.7*10-3Pa	±5℃	1000Kg
VOGQ-9915-2	900*900*1500mm	1300℃	4*10-1Pa/6.7*10-3Pa	±5℃	1200Kg
Remark: The working zone of equipment could be customized base on customer’s production.

Shanghai Geheng Vacuum Technology Co., Ltd. is a vacuum heat treatment furnace manufacturer with many years of experience in design, manufacturing and production. Mainly produce vacuum heat treatment furnace, vacuum sintering furnace, vacuum brazing furnace, New Energy And Environmental Protection Equipment and other vacuum equipments.Provide customized services, equipment work area can be based on customer output.
