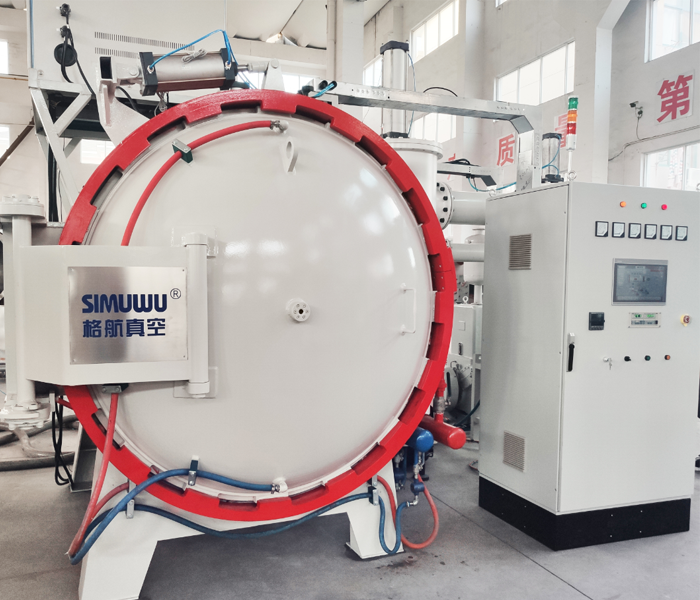

1600C Resistance Heating Vacuum Sintering Furnace

---

1. Feature

Cavity material: cast iron, stainless steel, optional

Structure: horizontal, vertical, intermittent, continuous

Maximum temperature: 500C-1600C (customized)

Temperature uniformity: ±5℃

Heating method: resistance, induction

Working vacuum: can be customized

Carrying capacity: adjustable

2. Technical Parameters

Working size (L×W×H)	unit	NTI-THL-54W	NTI-THL-243W	NTI-THL-300W	NTI-THL-400W	NTI-THL-720W	NTI-THL-720+W
Heating type	/	Graphite rod heating(cage type)
Loading capacity	g	HT area capacity×product’s density(g/cm³)×1000        1L=1000cm³
Input voltage	V	380V±10%,50Hz/60Hz   3 phase 5 wire
Furnace body type	/	Hotizontal
power	Kw	50	105	120	135	189	300-500
max.capacity	L	54	240	300	400	720	720+
Heating area amount	/	1	3	3	3	3	3-6
Max. temperature	℃	1600	1600	1600	1600	1600	1600
Working tem.	℃	1500	1500	1500	1500	1500	150015001500
Tem.uniformity	℃	±5	±5	±5	±5	±5	±10
working environment	/	Vacuum or Ar,N2  atmospher environment (micro-positive pressure)

Shanghai Geheng Vacuum Technology Co., Ltd. is a vacuum heat treatment furnace manufacturer with many years of experience in design, manufacturing and production. Mainly produce vacuum heat treatment furnace, vacuum sintering furnace, vacuum brazing furnace, New Energy And Environmental Protection Equipment and Vacuum Carbonization Furnace .Provide customized services, equipment work area can be based on customer output.
