Working principle of ceramic vacuum sintering furnace

Vacuum sintering furnace plays a very important role in the preparation process of advanced ceramics. Vacuum sintering is a key link in the preparation process of advanced ceramics. Its function is to heat-treat the formed ceramic green bodies at high temperatures to promote the bonding and densification between ceramic particles, and ultimately obtain ceramic materials with excellent properties. It not only affects the structure and performance of ceramic materials, but also affects the efficiency and environmental protection of the entire manufacturing process. In order to obtain ceramic materials with excellent properties, it is necessary to select the appropriate vacuum sintering furnace type and parameters, and to perform reasonable operation and maintenance.

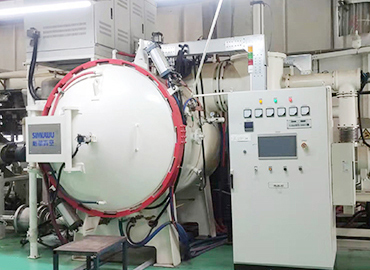

Vacuum sintering furnace: sintering in a vacuum state, suitable for sintering high-temperature, high-purity ceramic materials. The working principle of the vacuum sintering furnace is to place ceramic materials in the furnace and then evacuate the furnace into a vacuum state. Next, by heating the furnace, the ceramic material reaches a high temperature state, allowing chemical reactions and crystallization to occur. During the vacuum sintering process, the quality and performance of ceramic products can be controlled by controlling parameters such as temperature, vacuum degree, and pressure. Specifically, its working principle includes the following steps:
①Charging: Put the ceramic material to be vacuum sintered into the furnace.
② Vacuuming: The air in the furnace is extracted through a vacuum pump to form a vacuum environment.
③Heating: Heating the furnace through the heating element to make the ceramic material reach the required high temperature.
④Insulation: Keep it at a certain temperature for a period of time to allow the ceramic material to fully undergo chemical reaction and crystallization.
⑤ Cooling: After sintering is completed, the furnace is cooled through the cooling system to gradually cool the ceramic material to room temperature.
During the entire process, the vacuum environment can avoid the impact of oxygen and moisture in the air on ceramic materials, improving sintering quality and product performance. At the same time, by accurately controlling parameters such as temperature, vacuum, and pressure, the quality and performance of ceramic products can be effectively controlled.
Advantage:
(1) In a vacuum environment, problems such as oxidation and pollution can be avoided, and it is suitable for sintering of high-purity, high-temperature ceramic materials.
(2) The sintering atmosphere can be controlled to ensure the quality and stability of the sintering process.
Disadvantages:
(1) The equipment cost of vacuum sintering furnace is relatively high, and the operation and maintenance costs are also relatively high.
(2) Operation in a vacuum environment requires professional skills and experience, and the operation is difficult.
