Vacuum hot pressing sintering furnace function introduction

---

The vacuum hot pressing sintering furnace is an advanced high-temperature processing equipment, which is widely used in the preparation and processing of metals, ceramics and other materials. The high temperature and pressure in the vacuum environment are used to form a sealed atmosphere on the surface of the material, thus providing an ideal heating and compacting condition. Its core components include heaters, high-temperature chambers, vacuum systems and pressure control systems. By precisely controlling the heating temperature, maintaining constant pressure and controlling the sintering time, efficient sintering and densification of the material can be achieved.The vacuum hot pressing sintering furnace is mainly used for hot pressing sintering of cemented carbide, functional ceramics, powder metallurgy, etc. under high temperature and high vacuum conditions, and can also be hot pressed and sintered under inert gas protection.

Main features of the equipment:

1. The furnace body adopts a double-layer structure with water cooling in the middle, which effectively reduces the surface temperature of the furnace body, reduces high temperature damage, and reduces the impact on operators and ambient temperature.

2.The frame-type double-column support structure adopts profile welding and overall processing to ensure the reliability of the equipment.

3.The temperature range is wide and a variety of heating elements are available, such as graphite, molybdenum, tungsten, tantalum, etc. In a suitable protective atmosphere, the maximum temperature can reach 2200℃, which can adapt to the hot pressing sintering of different materials.

4.Vacuum can be equipped with a vacuum system (mechanical pump or diffusion pump unit) according to process requirements.

5.It is equipped with an inlet and outlet nozzle and an overpressure protection device. You can choose to perform hot pressing sintering in a vacuum environment, or in an inert atmosphere or a reducing atmosphere. You can also use other heating methods in an air environment (temperature ≤1600℃, heating elements can be selected according to temperature requirements: resistance wire, silicon carbon rod or silicon molybdenum rod) for hot pressing tests.

6.Diversified structures, vertical upper discharge, vertical side door discharge, unidirectional pressurization, bidirectional pressurization, etc., optional

Vacuum hot pressing sintering furnace is used to sinter powder materials under high temperature and high pressure conditions.

Vacuum hot pressing sintering furnace has the following functions:

Vacuum environment: The vacuum environment during the sintering process can prevent oxidation reaction and impurity contamination, thereby improving the purity and performance of the material.

High temperature operation: The sintering furnace can provide high temperature conditions, usually up to several thousand degrees Celsius. High temperature promotes the combination and diffusion between the original powder particles, achieving grain growth and densification.

High pressure pressing: The sintering furnace applies high pressure to make the powder particles contact more closely together, and deform and sinter at high temperature. This high pressure pressing can enhance the density and mechanical strength of the material.

Sintering process control: The sintering furnace has a precise temperature and pressure control system, which can achieve fine adjustment and monitoring of the sintering process. Such control helps to obtain the desired material properties and avoid overburning or incomplete sintering. In summary, the vacuum hot pressing sintering furnace achieves the densification and bonding of material powders by providing a vacuum environment, high temperature operation, high pressure pressing and sintering process control, thereby obtaining high-performance sintered materials.

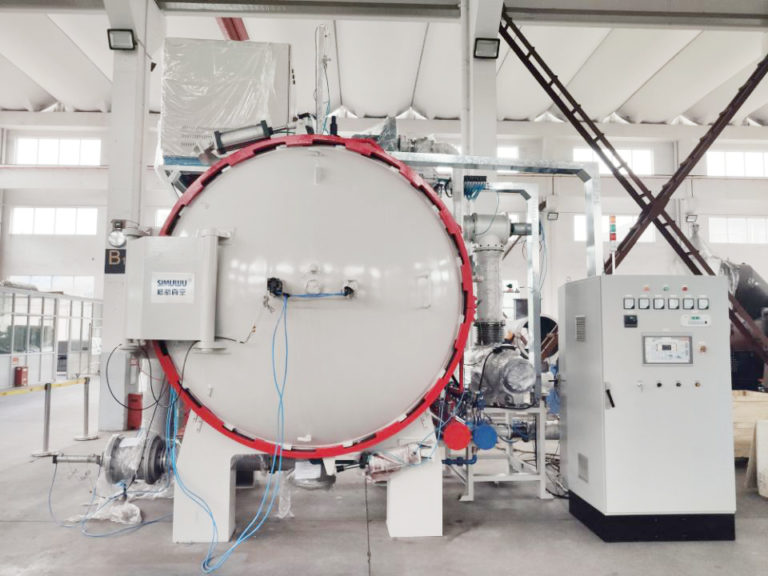

Vacuum Pressure Sintering Furnace

Spec\Model	RVP-3312	RVP-5513	RVP-5518
Working Zone Size (W*H*L)	320*320*1200mm	500*500*1300mm	500*500*1800mm
Max. Weight	250Kg	500Kg	800Kg
Max.Temperature	1800°C	1800°C	1800°C
Temperature uniformity under vacuum	±5°C	±5°C	±5°C
Temperature uniformity under pressure	±7.5°C	±10°C	±10°C
Heating Power	210Kw	300Kw	360Kw
Ultimate Vacuum	2Pa	2Pa	2Pa
Pressure Rising Rate	0.67Pa/h	0.67Pa/h	0.67Pa/h
Working pressure	20/60/100Bar	20/60/100Bar	20/60/100Bar
Process gas	Ar/N2/H2/CH4	Ar/N2/H2/CH4	Ar/N2/H2/CH4
The above specifications are defined according to cemented carbide part. The above parameters can be adjusted to the process requirements, they are not as acceptance standard, the detail spec. will be stated in the technical proposal and agreements.
