experimental vacuum electric furnace of sintering process

Energy saving semi continuous operation trolley type experimental electric furnace, electric baking furnace is used for precision casting shell baking, sodium silicate casting shell baking, steel ball, crusher hammer, high chromium and other high manganese steel castings, ductile iron, roll wear-resistant liner quenching, annealing, aging and heat treatment of various mechanical parts.

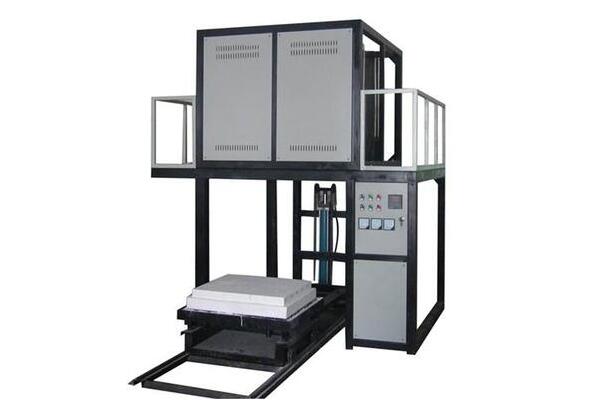

The baking furnace of experimental vacuum electric furnace is mainly composed of furnace body, furnace door, furnace lining, heating element, trolley control cabinet, etc. the furnace body and trolley adopt novel automatic sealing, which strengthens the sealing performance of furnace body. The trolley can be moved, which is convenient for loading and unloading and reduces labor intensity.

Experimental vacuum furnace, electric baking furnace cycle operation furnace, furnace and control cabinet with the use of automatic control of furnace temperature. The rated temperature is 850-1200. Special electric heating mould shell baking for water glass and composite process. Double trolley recycling, high thermal efficiency, high productivity, energy saving about 20% than ordinary trolley furnace. Using silicon carbide rod or high temperature furnace wire as heating element has the advantages of long service time, fast heating rate, good baking effect, less waste and high yield after pouring.

The electric baking furnace of the experimental vacuum electric furnace is made of high-quality refractory materials with good thermal insulation performance. The heating element is made of high resistance alloy wire. The whole body of the heating element placed on the wire laying brick around the furnace has uniform heating, long service life, safety and reliability. The special silicon carbide rod for stainless steel precision casting shell furnace of tubular furnace is an ideal energy-saving product to replace the electric furnace wire and coal furnace.

In the casting process, the experimental electric furnace, box type furnace and fuel oil box type baking furnace are the oil tigers of casting enterprises, especially the soaring prices of fuel oil and raw materials lead to the high cost of castings, which directly affects the benefits of precision casting enterprises.

For the electric furnace with hot material of silicon carbide rod, the opening and closing of furnace door and the entry and exit of trolley are driven by mechanical rotation, and the electric interlocking device is installed. When the furnace door is raised or closed to a certain position, the trolley can move. The furnace bottom plate is made of heat-resistant steel castings, etc.

The above is the details of the sintering process of the experimental vacuum furnace. If you have any problems with the experimental vacuum furnace, you can contact us directly.
