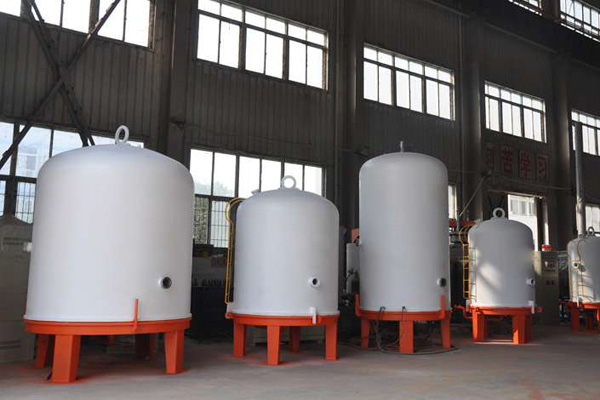

Plasma Nitriding Furnace

---

Plasma Nitriding Furnace Product Introduction
Glow plasma nitriding technology is an energy-saving, environmental protection, precise and efficient surface heat treatment process, which can be applied to the surface reinforcement of important parts and tools. Over the years, we have studied the plasma heat treatment technology field extensively and deeply and completed a number of major national research projects and obtained many patents. Our equipment and process technology has been successfully applied in key parts.

Available equipments:
RVN-LD series pulse power plasma nitriding furnace
Auxiliary heated ion nitriding furnace
Touch screen + PLC control automatic plasma nitriding
Computer controlled plasma nitriding furnace.
Pit type plasma nitriding furnace.
Non-standard and special plasma nitriding furnace.

Provided process and training
Deep controllable plasma nitriding patent technology, nitriding depth can reach 1.2mm and control the surface structure to obtain excellent fatigue properties.
Plasma oxygen sulfur nitride co-infiltration, which can obtain FeS and Fe3O4 layers with the function of oil storage and solid lubricant on the outside of the diffusion layer, and which combine wear-resistance and reducing wear performance.
Our plasma nitriding production base has complete inspection equipment with four large plasma nitriding furnace, providing technical training and turnkey project at any time.

The main technical specifications of RVN–LD series plasma nitriding furnace:

Model	Maximum Average Current	Maximum Treatment Surface Area	Effective Working Size（mm）	Output Voltage	Rated Temperature	Ultimate Pressure	Pressure Rising Rate
RVN-50LD	50A	25000cm2	640×1000	0~1000V	650℃	≤6.7Pa	≤0.13Pa/min
RVN-75LD	75A	37500cm2	900×1100	0~1000V	650℃	≤6.7Pa	≤0.13Pa/min
RVN-100LD	100A	50000cm2	1200×1200	0~1000V	650℃	≤6.7Pa	≤0.13Pa/min
RVN-150LD	150A	75000cm2	1500×1500	0~1000V	650℃	≤6.7Pa	≤0.13Pa/min
RVN-200LD	200A	100000cm2	1640×1600	0~1000V	650℃	≤6.7Pa	≤0.13Pa/min

Note: Non-standard size and pit type, auxiliary heating and program control plasma nitriding furnace can be customized.

The structure of the equipment is unique, and it can choose to equipped with DC or pulse power supply, providing the equipment and mature technology turnkey project.

With advanced deep plasma nitriding and plasma multi-element co-infiltration technology, we provide process debugging, equipment upgrading and other services.
