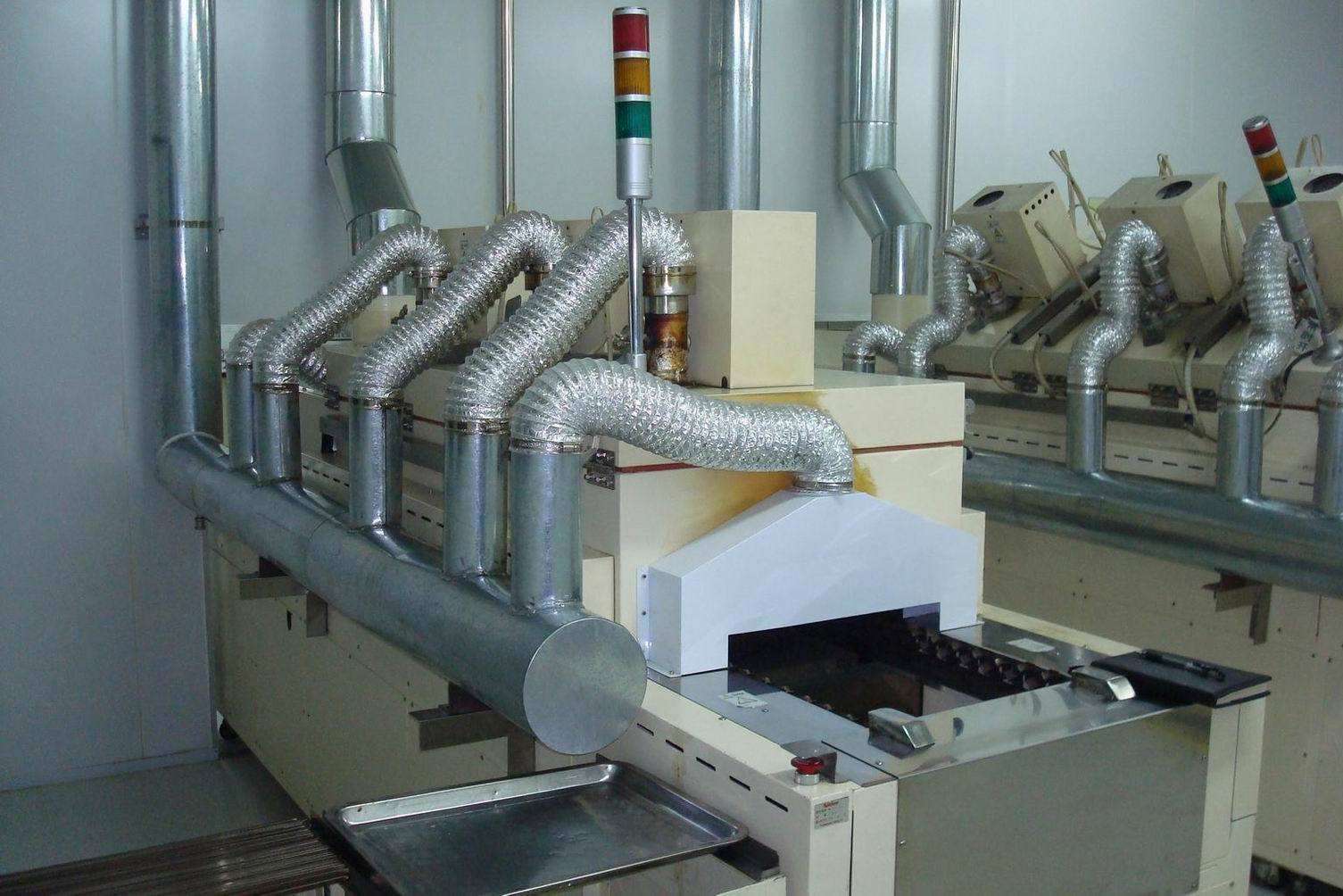

Mesh belt spring back to stove

First, the mesh belt spring back to the furnace parameters
The company is located in:
1, rated voltage: three-phase 380V, frequency: 50HZ.
2, rated temperature: room temperature ∽ *** ℃ (adjustable).
3, rated power: 30KW.
4, temperature control accuracy: ± 2 ℃;
5, heating element: stainless steel heating tube heat.
6, Wiring method: Y-Y-Y-shaped wiring method.
7, Transmission: electromagnetic speed motor control network with speed, speed range: 50 ∽ 500mm.

Second, mesh belt spring furnace furnace material

1, out of the material end bracket and the furnace shell with 60 × 60-side pass and cold plate folding pressure welding production, the furnace using light refractory brickwork furnace, heating plate mounted on the furnace up and down parts.
2, Furnace refractory brick and furnace shell filled with high temperature ceramic fiber insulation material, insulation layer thickness 200mm.
3, Conveyor belt with SUS304 # stainless steel double word net belt, mesh wire with wire diameter 1.6mm wire diameter 2.0mm, flanging on both sides high 15mm.
4, the drive mechanism AC motor, bipolar reducer, inverter control network with the operation of the network speed adjustable speed; motor power: 2.2KW, the inverter selected Taiwan love Deli brand.
5, the top of the furnace to install 3 sets of high temperature hot air circulation fan, fan power 0.37KW, blades for high temperature stainless steel blades.

Third, the mesh belt spring back to the stove electrical control

1, temperature control using 3 digital intelligent temperature controller automatic temperature control heating, with PID self-tuning control, heating control.
2, with 3-phase operating current, voltage display, leakage protection, over-temperature alarm and other functions.
3, heating element control using electronic trigger 3 sets of SSR module control, heating power adjustable size, temperature control accuracy.
