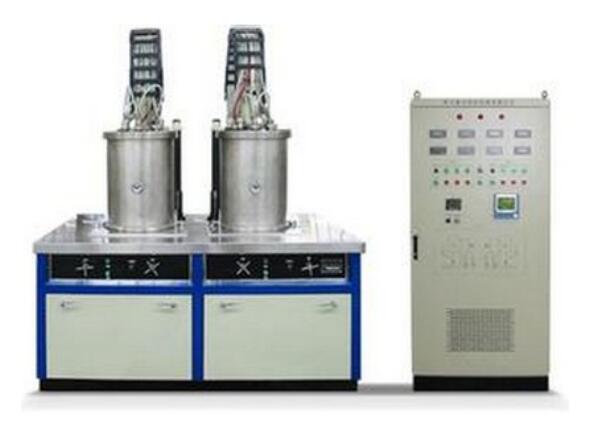

Medium temperature hydrogen furnace

---

Medium temperature hydrogen furnace equipment is a new generation of high reliability, high efficiency medium temperature hydrogen furnace, which can be widely used in metal parts brazing, annealing and surface treatment process in hydrogen environment. Our company has been engaged in the vacuum furnace industry for decades, rich experience, the majority of domestic and foreign production of vacuum furnace can be professional maintenance and transformation, so that the original equipment more reasonable and perfect, meanwhile equipment performance index greatly improved.

The company with the capability of design, manufacturing, maintenance ,company mainly Design, production, maintenance and reconstruction for high temperature hydrogen furnace, medium temperature hydrogen furnace, single station hydrogen furnace, double station hydrogen furnace, bottom feeding hydrogen furnace, vacuum hydrogen dual-use furnace.

Main features of medium temperature hydrogen furnace:

1. It has anti-interference ability and high reliability.Key components adopt imported parts or domestic famous brand products;

2. Through the thermocouple – thermostat – magnetic saturation regulator to change the output voltage, so as to control the heating power, Therefore, the furnace temperature can be increased according to the predetermined curve to meet the user’s different process requirements;

3. The pump, valve and heating are separately controlled by their own air switches, with necessary interlocking measures;

4. The panel is installed with voltmeter, ammeter, recorder, temperature controller, selection switch, button, etc., for convenient recording and operation;

5. It can store 20 different process curves, and each curve can be compiled into 30 steps, which is convenient to use;

6. Multi-fault warning, alarm, alarm security protection and fault self-diagnosis function;

7. It has good competitive price;

Main technical specifications of medium temperature hydrogen furnace:

Type: vertical, manual control
Temperature: Max 1600℃ Working 1550℃
Gas: H2 Flow≤1000L/h、0.02~0.04kgf/cm2，N2 Flow≤1000L/h、0.1~0.5kgf/cm2
Power supply: three-phase four-wire system 380V, 50Hz, the maximum heating power is about 30KW.The total power shall not be greater than 40KW.
Cooling water: pressure 2~3kgf/ cm2
Temperature uniformity: ±7.5℃
