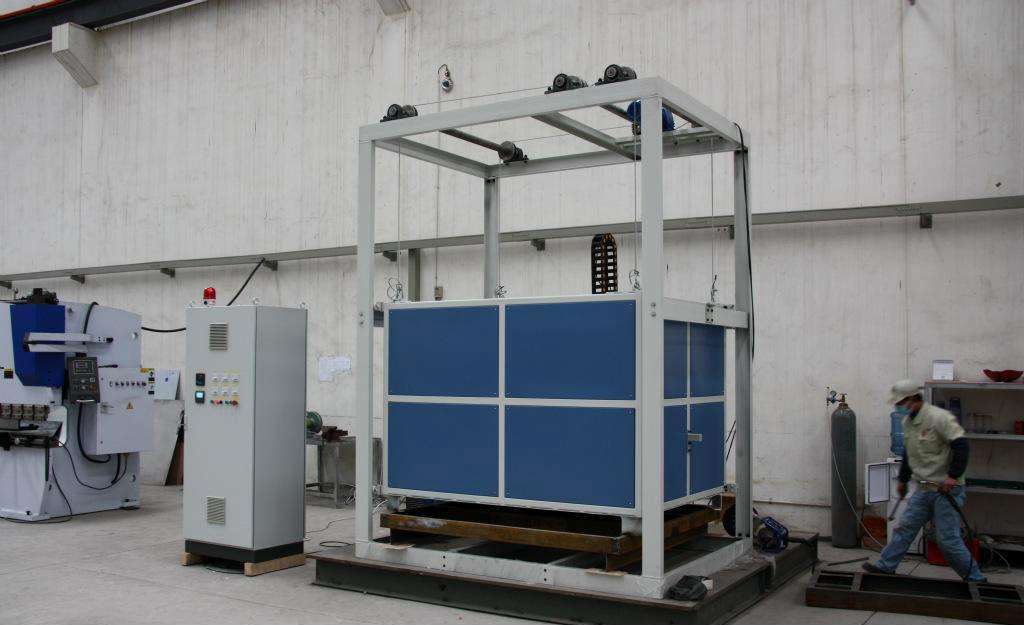

Lift double cart bell furnace

The main purpose:
Lifting dual cart bell furnace suitable for metal materials, heat treatment process, electronic components, powder metallurgy, magnetic materials such as plastic products, pre-burning and firing, quenching and tempering. University laboratories, industrial and mining enterprises laboratory for chemical analysis, physical determination and metal, ceramics, such as sintering and melting.

product description:
Elevator double trolley bell furnace control system and the hearth for the split design. The lining is made of vacuum forming high purity alumina poly-light material. The straight silicon carbide rod is used as the heating element; the furnace material is made of high-purity alumina refractory fiber with high service temperature, small heat storage capacity and good thermal insulation performance. Reasonable structure, both inside and outside the furnace shell, air cooling.

Scope of application:
Lifting dual cart bell furnace suitable for metal materials, heat treatment process, electronic components, powder metallurgy, magnetic materials such as plastic products, pre-burning and firing, quenching and tempering. University laboratories, industrial and mining enterprises laboratory for chemical analysis, physical determination and metal, ceramics, such as sintering and melting.

product structure:
Mainly by the heat insulation system, temperature control system, car control system, temperature measurement system and intake exhaust system.

Features:
1 heat insulation system
Heating with high-quality silicon carbon rod as a heating element, long life, easy replacement and maintenance; Furnace material with high quality polycrystalline alumina fiber, good thermal insulation; Furnace with double shell, air-cooled structure, the whole machine beautiful, Body surface temperature without hot feeling
2 temperature control system
Temperature control using PID intelligent temperature control system, heating process 30 programmable automatic control; Operation Kunlun Winton 7-inch touch screen, heating curve dynamic display, built-in paperless recorder function, heating historical data can be found inquiries, storage, Facilitate the refinement of industrial systems operations
3 car control system
Material car using double car cycle loading, loading operation; car track access control, material car lift hydraulic smooth access to the heating furnace; car bottom design bearing plate bottom, convenient slag cleaning
4 temperature measurement system
Temperature measurement using S-type platinum and rhodium thermocouple temperature, armored connection, long service life
5 intake exhaust system
Intake air valve control, protective gas through the valve into the furnace, exhaust through the top of the furnace exhaust vent, roof exhaust valve design manually open and close the valve to control the exhaust gas rate; inlet external float flow meter
