Introduction of vacuum carbonization furnace

---

SIMUWU mainly includes horizontal vacuum carbonization furnace and vertical vacuum carbonization furnace

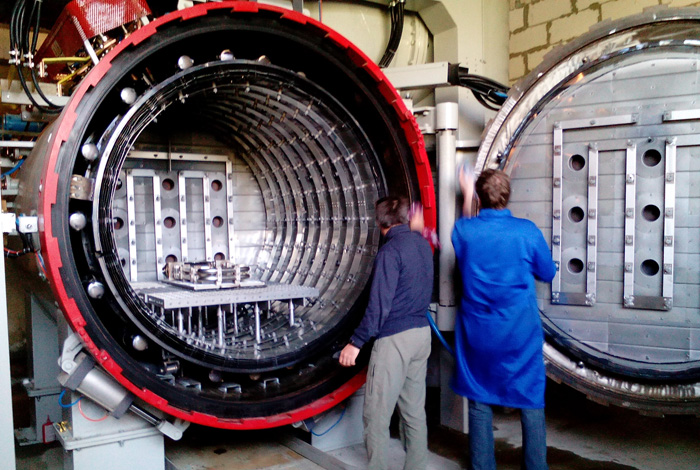

Horizontal vacuum carbonization furnace:
Mainly used for carbon / carbon composite materials, carbon fiber insulation materials, high thermal conductivity graphite film high temperature carbonation treatment.

Technical features:

Horizontal vacuum carbonization furnace (carbon material) with multi-temperature zone independent temperature control, temperature uniformity is good; optional external circulation fast cooling system, single furnace production cycle is short, can achieve positive or negative pressure carbonization process; The resulting tar, dust, tail gas, etc. can be effectively treated.

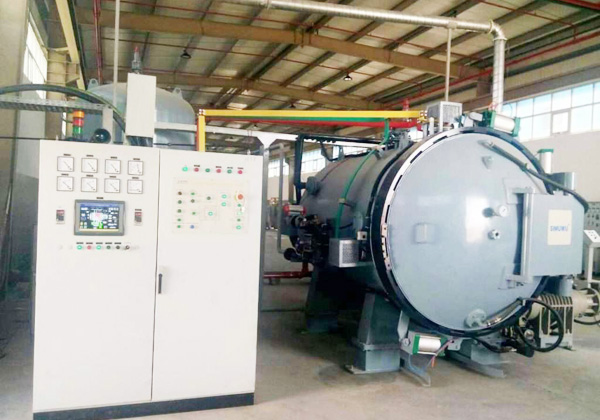

Vertical vacuum carbonization furnace:
Can be designed to use graphite as a heating body with a carbon heating environment, the maximum temperature of up to 1600 ℃ or more for carbon / carbon composites, ceramic matrix composites, carbon fiber insulation materials, high temperature carbonation, cracking treatment. Can also be designed to use metal as a heating body without carbon heating environment, the maximum temperature of 1100 ℃, for special materials in the aerobic degreasing, sintering and other treatment.

Technical features:

Vertical vacuum carbonization furnace for low temperature or room temperature vacuum, high temperature micro-pressure work i
Vertical vacuum carbonization furnace using metal heating body. 380V direct heating. Built-in all-metal high temperature muffle, can work in the oxygen environment. Anti-pollution ability, suitable for a variety of atmospheres and conditions:
For large-size equipment, can be designed into the upper and lower multi-zone temperature control, and further improve the equipment temperature uniformity;
Optional external circulation fast cooling system, single furnace production cycle is short;
Optional multi-stage exhaust gas treatment system, the production process of tar, dust, tail gas can be effectively treated.
