Square high temperature graphitization furnace

---

For some customers need to graphitize the product for the square shape, such as square graphite “box”, multi-layered graphite paper or laminated film and other materials that need to be graphitized, the conventional round barrel graphitization furnace, there will be internal installation The dead space of the material space creates space and power consumption.



Square high temperature graphitization furnace introduction
For some customers need to graphitize the product for the square shape, such as square graphite “box”, multi-layered graphite paper or laminated film and other materials that need to be graphitized, the conventional round barrel graphitization furnace, there will be internal installation The dead space of the material space creates space and power consumption. A square horizontal graphitizing furnace redeveloped by the company’s original foundation and technical department has the advantages of convenient loading and unloading of horizontal graphitizing furnace, convenient cleaning in the furnace, easier patrol of workshop operators, daily maintenance and furnaces. Easy to replace the internal consumables and other advantages, but also to solve the space and power consumption, but the temperature uniformity (can increase the processing temperature and longer heat preservation time to solve) and graphite crucible ablation resistance than the conventional graphitizing furnace There is a drop.

Square high temperature graphitization furnace parameter

Product model	IVG-130S	IVG-200 S	IVG-260 S	IVG-300 S	IVG-500 S
specifications (High X Wide X Long mm)	400X400×1000	500X500×1000	600X600×1200	700X700×1600	900X900×1600
IF power supply Kw	130	200	260	300	500
IF power supply frequency Hz	1500	1000	1000	1000	1000
Maximum operating temperature °C	3000	3000	3000	3000	2850
Ultimate vacuum Pa	1.2×10-1	1.2×10-1	1.2×10-1	1.2×10-1	1.2×10-1
Pressure rise rate Pa/h	0.67	0.67	0.67	0.67	0.67
Constant temperature zone temperature difference °C	±10	±10	±10	±10	±15
Note: 700X700 and above graphite crucible is a high-power graphite splicing type

Square high temperature graphitization furnace characteristics
1. The equipment has a high degree of automation. All switch components and all operating parameters of the equipment are stored in the PLC database in a digital form, and a communication interface can be reserved to facilitate customer connection.

2. Ultra-high temperature furnace within 3000°C, to meet the graphite treatment of various carbon materials.

3, using digital display intelligent temperature control system, automatic high-precision complete temperature measurement and temperature control process, the system can be heated according to a given temperature curve, and can store twenty different sections of a total of 400 different process heating curve.

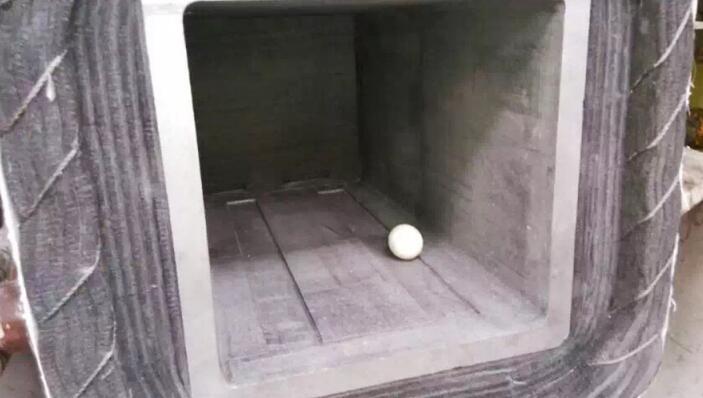

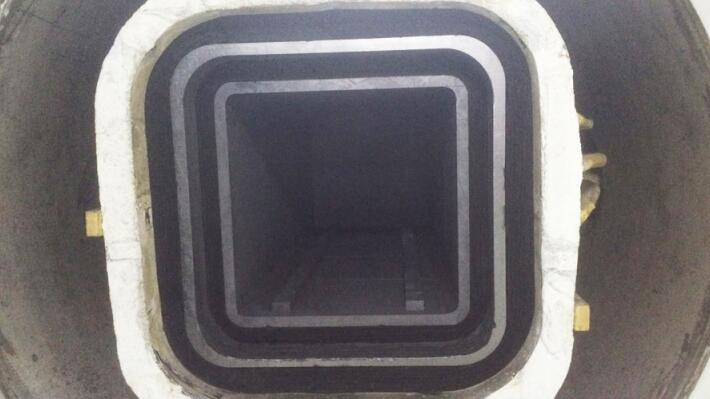

4. The square heat-generating graphite crucible adopts a large arc angle process, and the induction heat is more even. The company’s unique bottom support design has less ablation sinking and gravity sinking.

5, using the internal circulation of pure water cooling system; digital flow monitoring system, furnace body conversion using high-performance intermediate frequency contactor; comprehensive PLC water, electricity, gas automatic control and protection system.

6. The unique induction coil adopts 5 times of insulation treatment to completely solve the application problems of induction coil or high temperature insulation, so as to ensure the coil can maintain good insulation performance in corundum aging and cracking conditions, which can effectively prevent coil ignition and current leakage phenomena.
