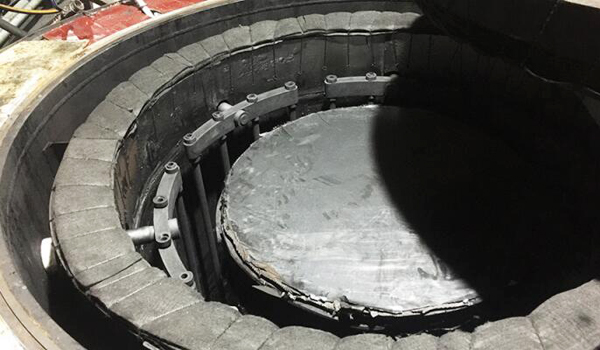

Graphite felt carbonization furnace

---

Hard felt PAN-based carbon felt or graphite felt is a matrix material that is bonded, cured, shaped, carbonized, and treated at high temperatures by special processes. Good shape retention, self-supporting, small specific gravity, no fluff off, high surface finish, low thermal conductivity, high temperature resistance, good thermal shock resistance (no cracking, no deformation in long-term use), long service life, Easy to install and replace, the use of temperature up to 3000 °C. It is the ideal new thermal insulation material for high temperature vacuum equipment and non-oxidation atmosphere high temperature equipment.

Graphite felt carbonization furnace introduction
It is mainly used for high temperature treatment of carbon/carbon composites, hard insulation blankets, cured felts, carbon fiber insulation materials, graphite products, etc. It is also used for graphitization of other materials.

product parameter

Type	Loading space size	Design tempreture	Rated temperature	Heating voltage	power	Ultimate vacuum	Pressure  riserate	Temperature uniformity	Loading weight
	mm	℃	℃	V	KW	Pa	pa/h	℃	KG
IVG-550CF	□1500X1500X3000	2300	2200	50	550	20		±15	5000
IVG-550CF	□1500X1500X3000	2300	2200	50	550	20		±15	5000
IVG-1200CF	□2500X2500X4000	2300	2200	50	1200	20		±15	10000
IVG-1500CF	□2500X2500X5000	2300	2200	50	1500	20		±15	15000
IVG-400CF	Φ2400X2600	2300	2200	50	400	20		±15	4000
1 Model Description: YH: Zhuzhou Yuanhang Industrial Furnace Technology Co., Ltd. TH: high temperature carbonization furnace W: Horizontal furnace S: square furnace R: circular furnace words represent width, height, length, and unit cm

product characteristics
1, hard felt PAN-based carbon felt or graphite felt as the matrix material, after special bonding, curing, shaping, carbonization, high temperature processing. Good shape retention, self-supporting, small specific gravity, no fluff off, high surface finish, low thermal conductivity, high temperature resistance, good thermal shock resistance (no cracking, no deformation in long-term use), long service life, Easy to install and replace, the use of temperature up to 3000 °C. It is the ideal new thermal insulation material for high temperature vacuum equipment and non-oxidation atmosphere high temperature equipment.

2. Applicable to various furnace types such as vacuum high pressure gas quenching furnace, vacuum sintering furnace, pressurized vacuum sintering furnace, monocrystalline silicon furnace, polycrystalline silicon furnace, silicon carbide recrystallization furnace, etc. Can be processed according to user requirements, processing tolerance is small, to provide flat, disc, cylinder and other shapes of products.

3. This vacuum carbonization furnace is a furnace designed specifically for the carbonization of domestic carbon material insulation materials. It is mainly used for the carbonization and graphitization of carbon felt, hard felt, graphite hard felt, and hard felt drums, firing Plates and drums.
