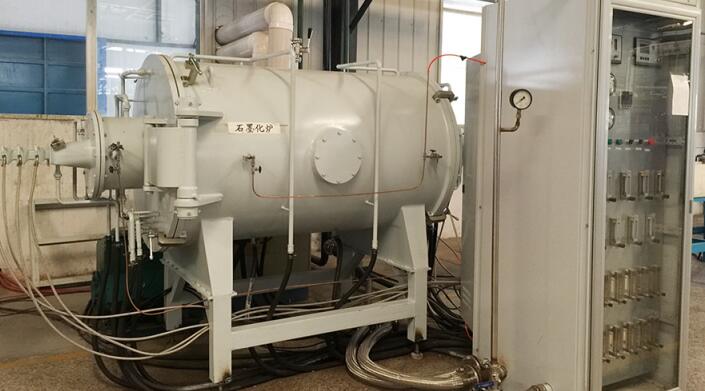

Continuous Graphitizing Furnace

The continuous graphitizing furnace is generally applicable to various carbon materials under the protection of various inert atmospheres, and after continuous temperature of 2000-3000° C., the hexagonal network structure begins rearrangement, starts to grow to a planar grid, and forms in some regions. A high-temperature furnace in which a part of the graphite network is stacked in an orderly manner to produce graphite crystals and increase the internal carbon content.

Continuous graphitizing furnace introduction
The continuous graphitizing furnace is generally applicable to various carbon materials under the protection of various inert atmospheres, and after continuous temperature of 2000-3000° C., the hexagonal network structure begins rearrangement, starts to grow to a planar grid, and forms in some regions. A high-temperature furnace in which a part of the graphite network is stacked in an orderly manner to produce graphite crystals and increase the internal carbon content. At present, the continuous graphitization furnace produced by our company is only suitable for the continuous graphitized production with round caliber, small square caliber or wide flat caliber, or the graphitization of all kinds of carbon materials with small heat capacity. Such as all kinds of high modulus asphalt-based carbon fiber, phase growth carbon fiber, silicon carbide fiber, graphite paper and other materials under a certain tension and self-traction.

Continuous graphitizing furnace product parameter

Continuous graphitizing furnace product characteristics
• Ultra-high temperature furnace body can fully satisfy the sintering and graphitization of various materials.
• Reserve multi-channel intake and exhaust ports to complete a variety of complex processes
• Imported high-precision infrared thermometer to ensure the accuracy of temperature measurement.
• Adopt digitally-displayed intelligent temperature control system to automatically complete high-precision temperature measurement and temperature control process. The system can heat up according to a given heating curve, and can store twenty different 400-stage heating curves.
• Adopts true inner-circulation pure water cooling system; full dust-proof design, full monitoring of water temperature level.
• Water flow section adopts the latest thermal flow monitoring system
• Comprehensive PLC water, electricity, gas automatic control and protection system.
Extremely overloaded, short-circuited and mis-triggered IGBT power devices, and overvoltage protection
• Modular design, easy installation and maintenance
• All the parts and components of the complete machine are serial numbered and fully correspond to the schematic diagram, which greatly reduces the maintenance time and can be maintained remotely.
• Human-machine interface full parameter data acquisition
• Man-machine interface display and operation, complete machine operating parameters at a glance, easy to operate.
