Dual hydrogen furnace

---

Hydrogen furnace a kind of heating equipment.,also known as hydrogen furnace.which charge into hydrogen or hydrogen, nitrogen mixture gas (hydrogen content >5%) as a protective atmosphere.

With 2 types instructure:Vertical and Horizontal type. Heating element usually adopt molybdenum wire (mo melting point is 2630 ℃), shell for metal, maintain good air tightness. Kiln furniture commonly used molybdenum boat, can be continuous production, high efficiency.The vertical hydrogen furnace is similar to the horizontal type and occupies a small area, which is suitable for small batch production.

Hydrogen furnace can be used for ceramic sintering or metallization, brazing, glass parts for sealing metal parts annealing and purification. It can also be used for sintering powder metallurgy and semiconductor alloy. In operation, pay attention to safety of air circuit, circuit and water system, especially to prevent leakage into the air, so as to avoid high temperature hydrogen spontaneous combustion explosion accident.

Dual hydrogen furnace features:
automatic control and manual control;
Automatic temperature control accuracy±1℃;
Automatic temperature control selection of piecewise program temperature controller, equipment and storage of several programs, according to the requirements of the process curve heating, to meet various process requirements;
Temperature controller table can be selected according to the need of various types of temperature controller;
The heating adopts magnetic transformer + transformer + power regulator to reduce the pollution to the power grid;
Hydraulic system selection of excellent configuration, smooth lifting, no leakage, low noise;
Water and air pressure are under pressure control, alarm sound, light display, flow alarm can be realized according to user requirements;
Equipped with paperless recorder, which can record and store the usage within one month;
Stainless steel Table plate, spray paint color coordination, beautiful and generous appearance ;
The two – position hydrogen furnace series is mainly distinguished from the structure of hydrogen furnace;

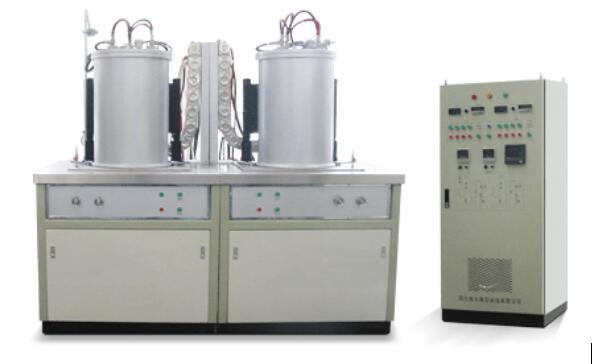

VHF-T2 series Two-position vertical hydrogen furnace

Technical parameters of Vertical double – station hydrogen furnace
Model	structure	effective volume （mm）	Max. temp. （℃）	Uniformity temp. （℃）	Power (KW.)
VHF-T2-25	Double station/ vertical	Φ250×250	1200	±7.5	25
VHF-T2-30	Double station/ vertical	Φ270×300	1200	±7.5	30
VHF-T2-35	Double station/ vertical	Φ300×350	1200	±7.5	35
VHF-T2-42	Double station/ vertical	Φ350×300	1200	±7.5	42
VHF-T2-45	Double station/ vertical	Φ350×500	1200	±10	45
VHF-T2-20	Double station/ vertical	Φ200×300	1250	±7.5	20
VHF-T2-40	Double station/ vertical	Φ270×300	1250	±7.5	40
VHF-T2-50	Double station/ vertical	Φ300×400	1250	±7.5	50
VHF-T2-70	Double station/ vertical	Φ350×450	1250	±7.5	70
VHF-T2-30H	Double station/ vertical	Φ250×280	1300	±7.5	30
VHF-T2-50H	Double station/ vertical	Φ300×400	1300	±7.5	50
VHF-T2-60	Double station/ vertical	Φ350×450	1300	±10	60
VHF-T2-35H	Double station/ vertical	Φ200×250	1600	±7.5	35
VHF-T2-40H	Double station/ vertical	Φ250×300	1600	±7.5	40
VHF-T2-45H	Double station/ vertical	Φ250×350	1600	±10	45
VHF-T2-50H	Double station/ vertical	Φ270×350	1600	±7.5	50
VHF-T2-70H	Double station/ vertical	Φ300×350	1600	±7.5	70
VHF-T2-75H	Double station/ vertical	Φ300×500	1600	±10	75

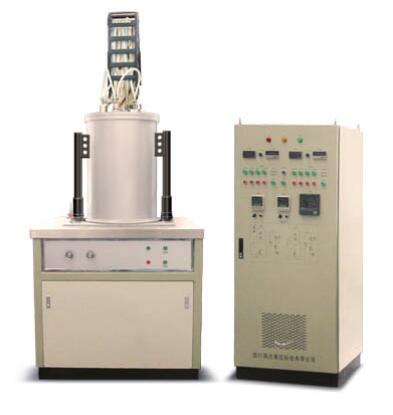

VHF-T Series of single station vertical hydrogen furnace

Technical parameters of single station vertical hydrogen furnace
Model	structure	effective volume （mm）	Max. temp. （℃）	Ultimate temp. （℃）	Power (KW.)
VHF-T-60	Single station/vertical	Φ420×400	1200	±10	60
VHF-T-160	Single station/vertical	Φ500×1000	1200	±10	160
VHF-T-100	Single station/vertical	Φ550×750	1200	±10	100
VHF-T-80	Single station/vertical	Φ420×750	1250	±10	80
VHF-T-60T	Single station/vertical	Φ420×400	1300	±10	60
VHF-T-120	Single station/vertical	Φ500×600	1300	±10	120
VHF-T-120T	Single station/vertical	Φ500×600	1600	±10	120
VHF-H-20	Single station/vertical	Φ60×200	1800	±10	20
VHF-H-25	Single station/vertical	35×15×150	2000	±10	25
VHF-T-75	Single station/vertical	Φ80×150	2200	±10	75
