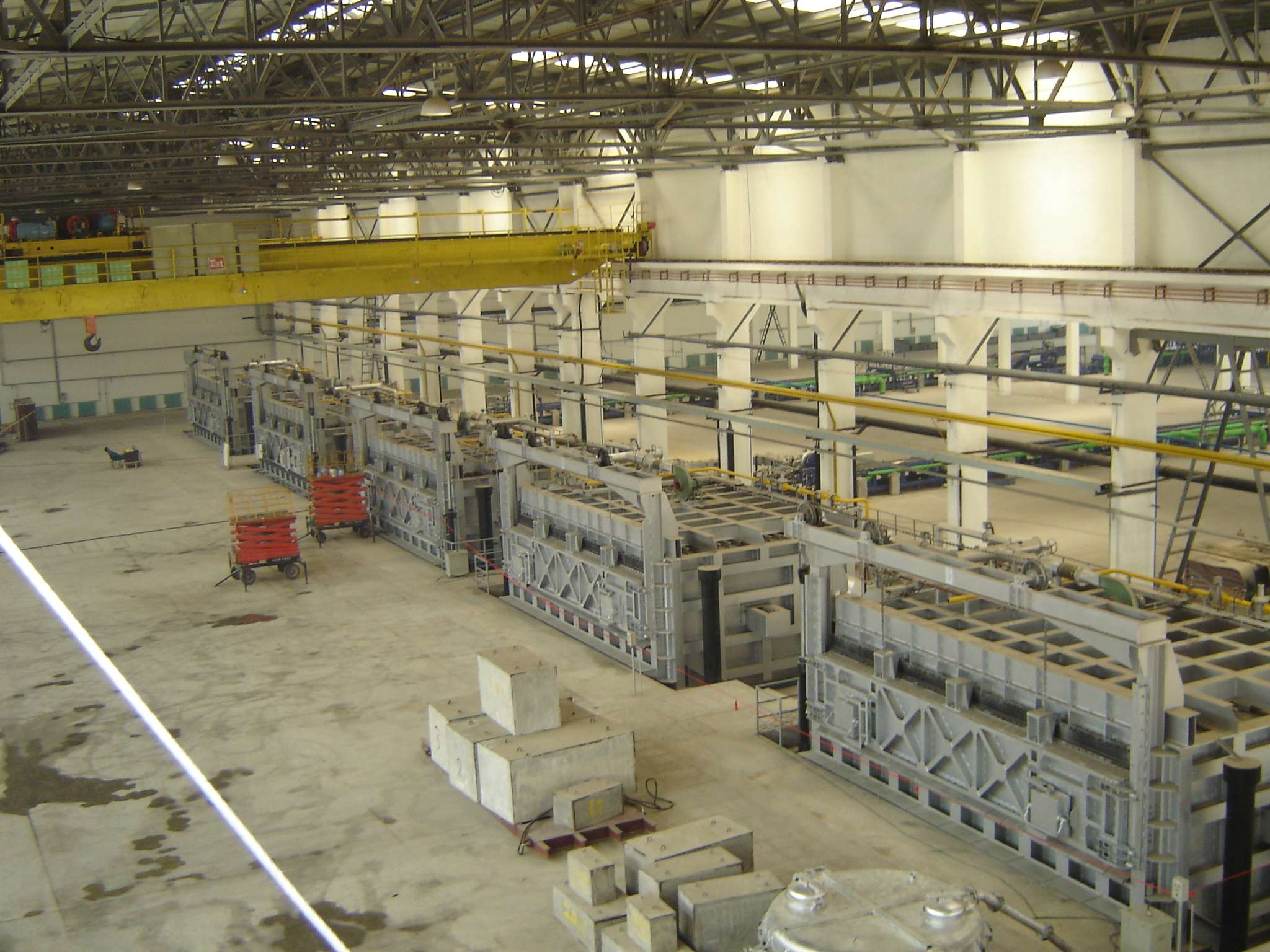

Aluminum liquid holding furnace

Aluminum liquid holding furnace Product introduction:
Aluminum liquid holding furnace is mainly used for storage of aluminum or aluminum alloy melt through the melting furnace runner transfer to the holding furnace in the aluminum or aluminum alloy melt by standing, after the temperature adjustment of the melt composition and temperature and other aspects of compliance Casting process requirements, forwarded to the casting machine for casting, will raise the quality of high aluminum products.

Aluminum liquid holding furnace features:
1. Insulation effect significantly holding furnace as the name suggests play a role of static liquid aluminum insulation, East Cape thermal insulation furnace refractory lining of its own use of the Company’s own high-end new refractory material, with significant thermal insulation effect, according to different loads And different conditions do targeted structural design.
2. Rapid warming Eastop heat through the lining of the insulation layer and the impermeable layer of repeated research and development, targeted design of the refractory for the holding furnace and achieved outstanding results, making warming faster.
3. Simple operation The holding furnace control system uses intelligent instruments and zero-crossing triggering three-phase power control, user interface is simple, technicians can quickly learn to master.
4. Energy saving and environmental protection The thermal insulation furnace of Dongpu Thermal Energy is smoke-free and dust-free, which saves 30% of the cost compared with diesel oil furnaces and reduces the emission of polluting gases.
5. Safe and reliable Each burner with an independent complete combustion controller, with automatic ignition, flame detection, fire alarm automatically shut down, so fully guarantee the combustion temperature control system stability and safety.

Masonry way
1. The molten pool is composed of high-quality non-stick aluminum castable (alumina content ≥76%, can not affect the composition of aluminum liquid), impermeable material, lightweight thermal insulation brick and ceramic fiber mat, round corner design chamfer to prevent Aluminum liquid corner, easy to slag and furnace slag, and effectively resolve the stress generated at right angles
2. The side wall above 300mm in liquid surface is made of clay refractory brick (or heavy refractory castable), insulating brick and ceramic fiber mat
3. Top of the heavy refractory castable, ceramic fiber blanket, light insulation refractory castable, hanging cast from the whole pouring, through the uniform arrangement of heat-resistant steel clip fixed to the top of the steel
4. The bottom of the furnace insulation masonry ramming layer of dry seepage material, which can effectively heat insulation to prevent liquid aluminum leakage
5. Furnace door with steel fiber reinforced refractory castable poured from the whole, can increase the overall strength, wear resistance and thermal shock resistance
6. Lining various parts of the material distribution with reference to the melting furnace (of which the bottom of the lightweight insulating brick thickness 230mm)
7. By the aluminum mouth with aluminum casting material, impermeable material, lightweight brick and refractory fiber masonry, can effectively reduce the turbulence caused by oxidation slag
