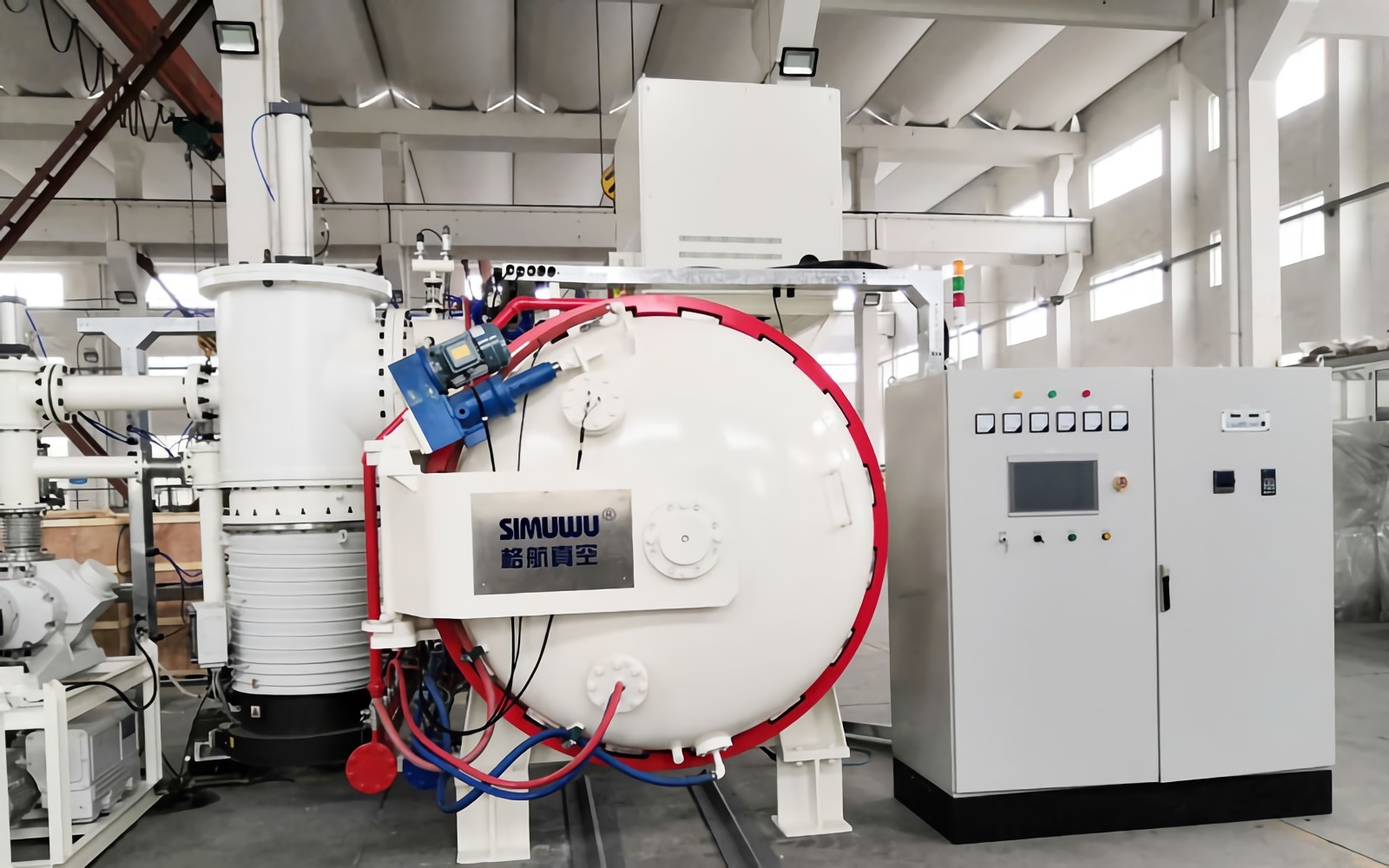

Vacuum Gas Quenching Furnace

---

Vacuum Gas Quenching Furnace is applied for quenching high-speed tool steel, measuring vacuum hardening and cutting steel, tool steel and other alloy steel, with convection heating function, which can achieve the process of  step hardening,  isothermal quenching, but also tempering, annealing and other heat treatment process. Ultimate pressure :cooling gas ,6Bar or 10Bar.

The control system was controlled by PLC, temperature was controlled by intelligent temp controller, accurate control,high automation. User can choose auto or manual undisturbed switching tooperate it, this furnace has abnormal condition alarming function, easy to operate.

Environmental protection performance of vacuum furnace has been improved, maintenance cost saving, energy cost saving.

Model	Temperature Uniform Size	MAX Temperature	Cooling Gas Pressure	Ultimate Pressure	Temperature Uniformity	Loading Capacity
RVGQ-446	400*400*600mm	1350℃	6/10/15bars	4*10-1Pa/6.7*10-3Pa	±5℃	200Kg
RVGQ-557	500*500*700mm	1350℃	6/10/15bars	4*10-1Pa/6.7*10-3Pa	±5℃	300Kg
RVGQ-669	600*600*900mm	1350℃	6/10/15bars	4*10-1Pa/6.7*10-3Pa	±5℃	500Kg
RVGQ-7710	700*700*1000mm	1350℃	6/10/15bars	4*10-1Pa/6.7*10-3Pa	±5℃	700Kg
RVGQ-8812	800*800*1200mm	1350℃	6/10/15bars	4*10-1Pa/6.7*10-3Pa	±5℃	1000Kg
RVGQ-9915	900*900*1500mm	1350℃	6/10/15bars	4*10-1Pa/6.7*10-3Pa	±5℃	1200Kg
RVGQ-V0507	φ500*700mm(vertical)	1350℃	6/10/15bars	4*10-1Pa/6.7*10-3Pa	±5℃	300kg
RVGQ-V0709	φ700*900mm(vertical)	1350℃	6/10/15bars	4*10-1Pa/6.7*10-3Pa	±5℃	500Kg
RVGQ-V1010	Φ1000*1000mm(vertical)	1350℃	6/10/15bars	4*10-1Pa/6.7*10-3Pa	±5℃	800Kg
RVGQ-V1210	Φ1200*1000mm(vertical)	1350℃	6/10/15bars	4*10-1Pa/6.7*10-3Pa	±5℃	1000Kg
RVGQ-V1412	Φ1400*1200mm(vertical)	1350℃	6/10/15bars	4*10-1Pa/6.7*10-3Pa	±5℃	1500Kg
Remark: The working zone of equipment could be customized base on customer’s production.

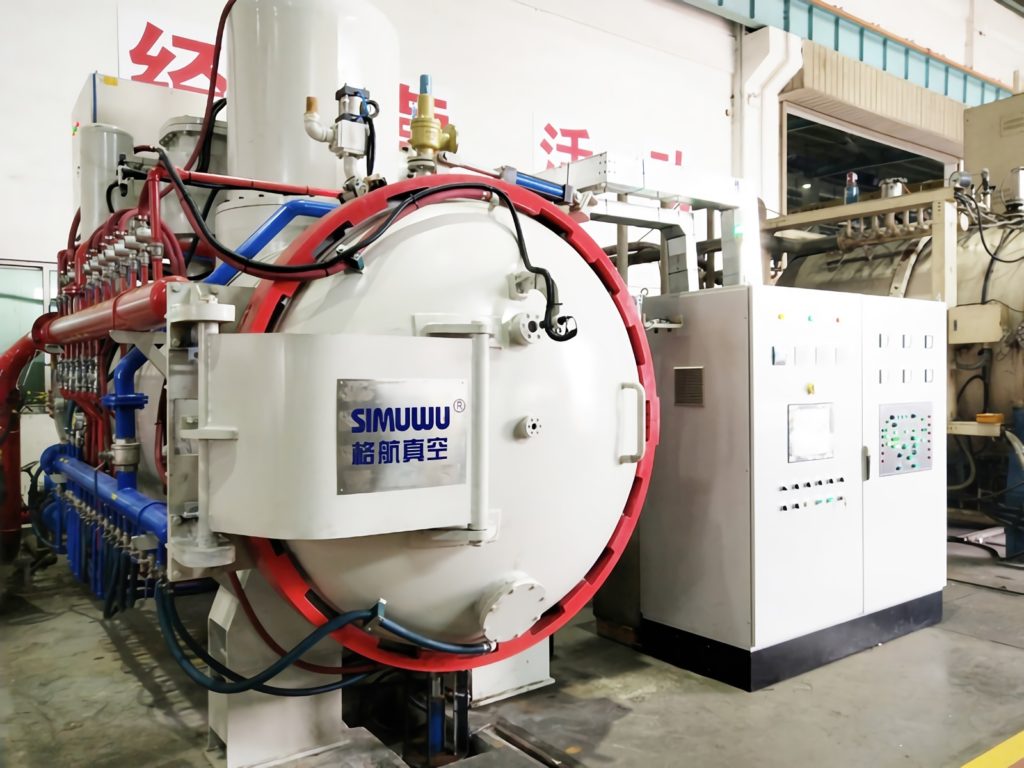

Double-chamber vacuum gas quenching furnace

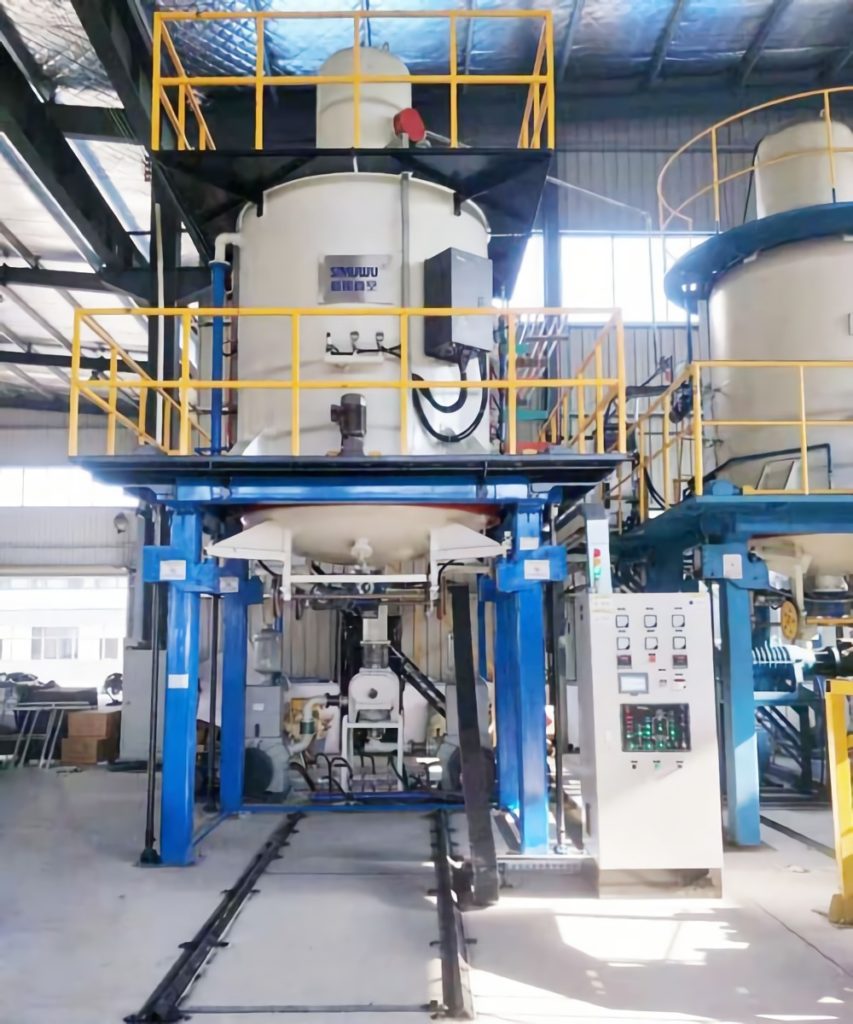

vertical vacuum gas quenching furnace
